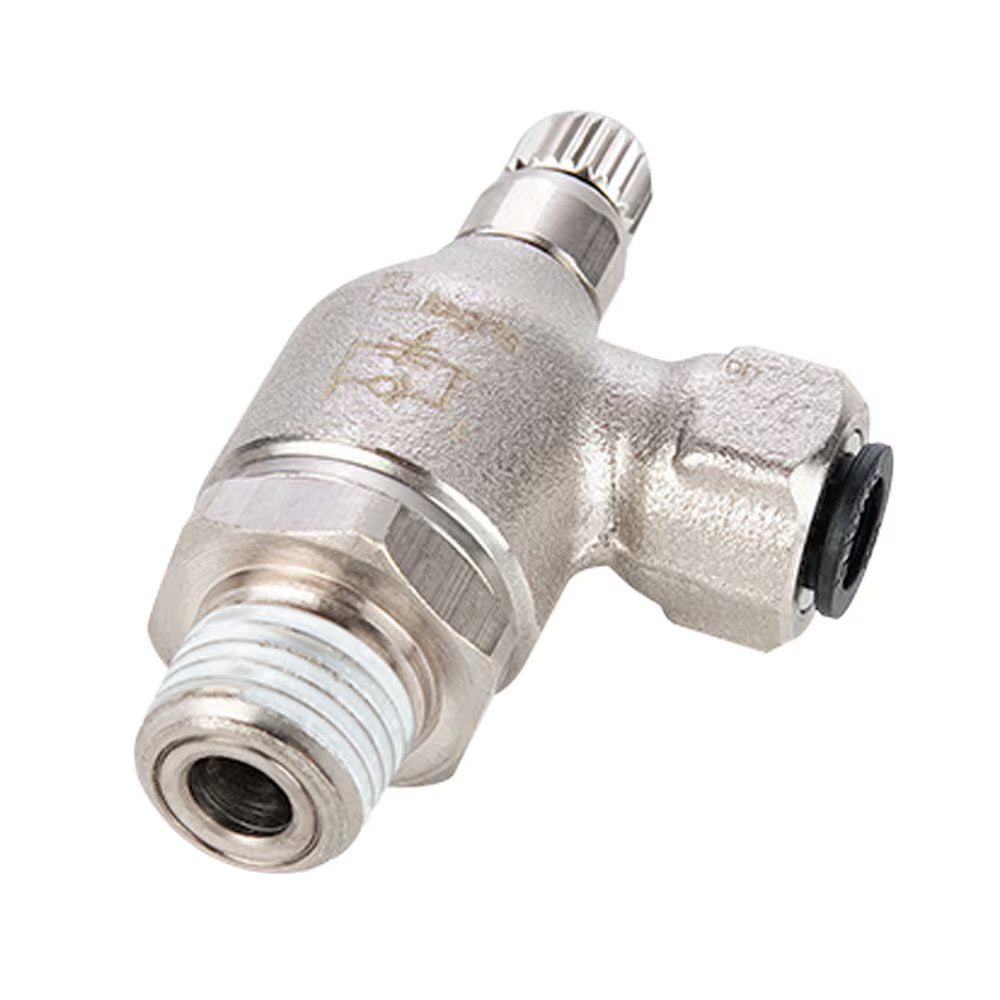

7105 60 18 by Parker | Legris Flow Control Regulator | 3/8" Push-to-Connect x 3/8" Female NPT Thread | 25mm Hex | 90° Elbow | Nickel-Plated Brass

7105 60 18 by Parker | Legris Flow Control Regulator | 3/8" Push-to-Connect x 3/8" Female NPT Thread | 25mm Hex | 90° Elbow | Nickel-Plated Brass

Sale price$63.16

by Parker Hannifin
Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass:7105 Flow Control Regulators
Buy More, Save More!
Quantity Price Each
20–39 $59.37
40–79 $53.69
80+ $47.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7105 Series
Shape:

90° Elbow

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Female NPT
Product Features:
  • Improved Productivity
  • Higher maximum flow than standard regulators
  • Full flow with minimum pressure drop (model 7060)
  • Optimal control of the cylinder rod speed
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability
  • Reduce compressed air and energy consumption
Accuracy & Performance:
  • Precise adjustment for accurate flow regulation from initial to maximum opening
  • Constant cylinder rod displacement speed
  • Long-term stability of flow
  • Reduced weight (polymer version)
  • Mechanical strength and corrosion resistance with nickel-plated brass version
Ergonomics & Large Range:
  • External adjustment screw: easy to adjust without tooling and lockable
  • Recessed adjustment screw: more compact and protects the adjustment mechanism
  • Uni-directional: exhaust or inlet
  • Bi-directional: adjustment of air flow in both directions
  • 360° positioning
  • NPT version on request
Markets:
  • Factory Automation
  • Vehicle Assembly Facilities
  • Food and Beverage
  • Semiconductor
  • Packaging Machinery
Applications:
  • Pneumatic Cylinder Control
  • Low Pressure Compressed Air Flow Regulation and metric thread
Part Number Connection 1 Size Connection 2 Size Hex Kg
7105 56 11 1/4" 1/8" 19 mm .08 Kg
7105 56 14 1/4" 1/4" 19 mm .083 Kg
7105 60 14 3/8" 1/4" 19 mm .108 Kg
7105 60 18 3/8" 3/8" 25 mm .111 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
