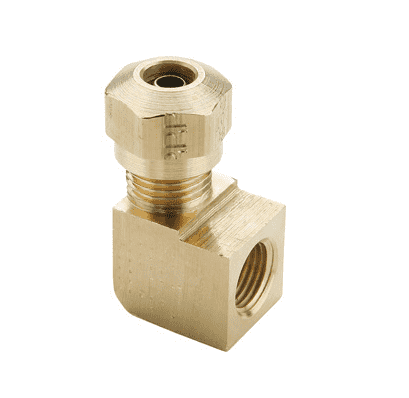

70NAB88 Dixon Valve Brass Air Brake Fitting - Female Elbow - 1/2" Tube OD - 1/2" Pipe Thread - 11/16"-20 Straight Thread
Dixon

70NAB88 Dixon Valve Brass Air Brake Fitting - Female Elbow - 1/2" Tube OD - 1/2" Pipe Thread - 11/16"-20 Straight Thread

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Applications:
  • Compression style air brake fittings utilizes ribbed sleeve for compression and positive grip.
Features:
  • Ref. SAE 100203 BA.
  • Materials: machined from CA360, CA345, or CA377 brass.
  • Pre-applied thread sealant on all male pipe threads.
  • Working pressure: 150 PSI maximum.
  • Working temperature: -40 deg. F to 200 deg. F.
  • Compatible tubing: SAE J844 type A and B.
  • Specifications: Meets D.O.T FMVSS 571.106 and SAE J1131, and SAE J2494.
  • These fittings are designed for use in air brake systems or in cab controls.
Assembly Instructions:
  • Cut tubing squarely - maximum of 15 deg. angle allowable.
  • Check that port or mating part is clean and free of debris.
  • Insert tubing into fittings until it bottoms on seat.
  • Tighten nut with wrench until one thread remains visible on the fittings body; (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench-tightened as indicated in the chart below.
Tube Size Turns required to seal from hand tight
3/16" 2-1/2
1/4" 3
3/8" & 1/2" 4
5/8" & 3/4" 3-1/2
Part Number Tube OD Pipe Thread Straight Thread Max. PSI Min/Max Temp Material Package Quantity Weight (Lbs.)
70NAB32 3/16" 1/8" 5/16"-24 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 25 1.3750
70NAB42 1/4" 1/8" 7/16"-24 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 25 1.4500
70NAB44 1/4" 1/4" 7/16"-24 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 25 2.3750
70NAB62 3/8" 1/8" 17/32"-24 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 10 0.6000
70NAB64 3/8" 1/4" 17/32"-24 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 10 1.2600
70NAB66 3/8" 3/8" 17/32"-24 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 10 1.1780
70NAB86 1/2" 3/8 11/16"-20 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 10 1.4870
70NAB88 1/2" 1/2" 11/16"-20 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 10 1.6500
70NAB108 5/8" 1/2" 13/16"-18 150 (10.20 bar) -40 deg. F/ 200 deg. F (-40.00 deg. C / 93.33 deg. C) Brass 10 2.2200
