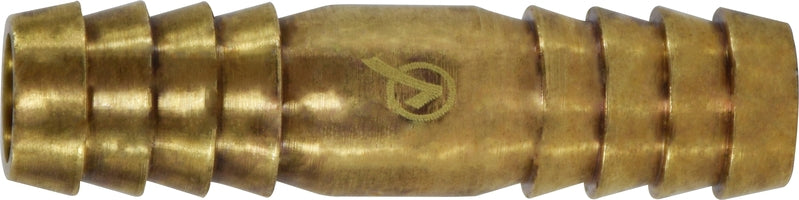

707014-05 by Midland | Lead Free Hose Barb Fitting | Mender/Splicer | 5/16" Hose ID x 5/16" Hose ID | Brass | Replaces: 32094LF / 32-094LF

707014-05 by Midland | Lead Free Hose Barb Fitting | Mender/Splicer | 5/16" Hose ID x 5/16" Hose ID | Brass | Replaces: 32094LF / 32-094LF

Minimum Order Quantity: 5 Units

Sale price$3.56

Midland Industries
Lead Free Brass Fitting - Hose Barb Fitting - Mender/Splicer
Buy More, Save More!
Quantity Price Each
20–39 $3.35
40–79 $3.03
80+ $2.67
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/16in Hose Barb
  • 5/16in Hose Barb
  • Some Ends Match
Material(s):
  • Lead Free Brass

SPECIFICATIONS

Applications: Used with plastic tubing or rubber hose. Use: Intended for use with hose clamp or crimp type ferrule.
Temperature Range -40° to 200° F Vibration Resistance: Excellent
Conformance: Meets specifications and standards in Section 1417 of the Safe Drinking Water Act. Lead Free: Yes. Lead Free Info (PDF)


Features:
  • One piece, except swivels (nut and stem).
  • Barbed edges provide positive connection.
  • Barb size is hose ID.
Part Number Hose ID x Hose ID
707014-03 3/16" x 3/16"
707014-04 1/4" x 1/4"
707014-05 5/16" x 5/16"
707014-06 3/8" x 3/8"
707014-08 1/2" x 1/2"
707014-10 5/8" x 5/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
