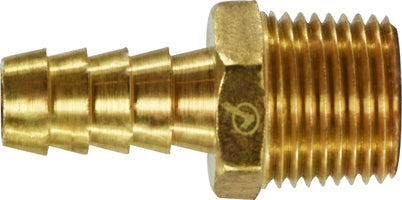

707001-0404 by Midland | Lead Free Hose Barb Fitting | 1/4" Hose ID x 1/4" Male NPTF | Rigid Adapter | Brass | Replaces: 32005LF / 32-005LF
Minimum Order Quantity: 5 Units
Midland Industries
Lead Free Brass Fitting - Hose Barb Fitting - Rigid Male Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.97 |
| 40–79 | $3.59 |
| 80+ | $3.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Applications: | Used with plastic tubing or rubber hose. | Use: | Intended for use with hose clamp or crimp type ferrule. |
|---|---|---|---|
| Temperature Range | -40° to 200° F | Vibration Resistance: | Excellent |
| Conformance: | Meets specifications and standards in Section 1417 of the Safe Drinking Water Act. | Lead Free: | Yes. Lead Free Info (PDF) |
| Features: | |||
|---|---|---|---|
|
| Crossover Series: |
|---|
| LF29 |
| Part Number | Hose ID x Male NPTF |
|---|---|
| 07001-0202 | 1/8" x 1/8" |
| 707001-0204 | 1/8" x 1/4" |
| 707001-0302 | 3/16" x 1/8" |
| 707001-0304 | 3/16" x 1/4" |
| 707001-0402 | 1/4" x 1/8" |
| 707001-0404 | 1/4" x 1/4" |
| 707001-0406 | 1/4" x 3/8" |
| 707001-0408 | 1/4" x 1/2" |
| 707001-0502 | 5/16" x 1/8" |
| 707001-0504 | 5/16" x 1/4" |
| 707001-0506 | 5/16" x 3/8" |
| 707001-0602 | 3/8" x 1/8" |
| 707001-0604 | 3/8" x 1/4" |
| 707001-0606 | 3/8" x 3/8" |
| 707001-0608 | 3/8" x 1/2" |
| 707001-0804 | 1/2" x 1/4" |
| 707001-0806 | 1/2" x 3/8" |
| 707001-0808 | 1/2" x 1/2" |
| 707001-0812 | 1/2" x 3/4" |
| 707001-1006 | 5/8" x 3/8" |
| 707001-1008 | 5/8" x 1/2" |
| 707001-1012 | 5/8" x 3/4" |
| 707001-1208 | 3/4" x 1/2" |
| 707001-1212 | 3/4" x 3/4" |
| 707001-1612 | 1" x 3/4" |
| 707001-1616 | 1" x 1" |
