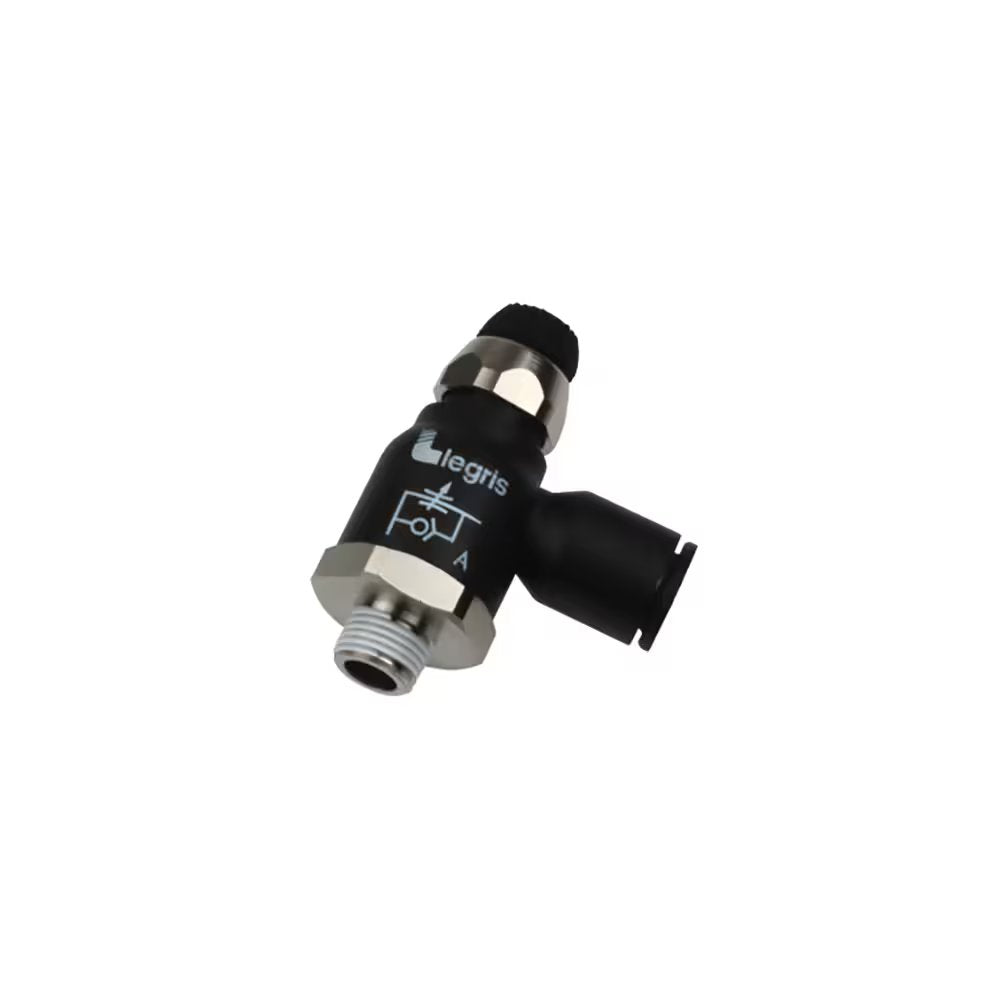

7065 10 17 by Parker | Legris Compact Flow Regulator | 10 mm Tube Size x 3/8" Male BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 5

7065 10 17 by Parker | Legris Compact Flow Regulator | 10 mm Tube Size x 3/8" Male BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 5

Sale price$270.50

by Parker Hannifin
Flow Control Regulators:7065 Compact Flow Regulator Exhaust, Male BSPT Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $254.27
15–29 $229.93
30+ $202.88
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7065 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 3/8in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F F1 H (max) H (min) H1 L L1 ØT Kg
7065 06 10 6 mm 1/8" 10 mm 16 mm 42.5 mm 36.5 mm 15 mm 22 mm 8 mm 10 mm .021 Kg
7065 08 10 8 mm 1/8" 14 mm 19 mm 45 mm 40 mm 16.5 mm 28 mm 10.5 mm 14 mm .034 Kg
7065 08 13 8 mm 1/4" 14 mm 19 mm 45 mm 40 mm 16.5 mm 28 mm 10.5 mm 14 mm .036 Kg
7065 10 13 10 mm 1/4" 17 mm 23 mm 51.5 mm 43.5 mm 18 mm 31.5 mm 12.5 mm 17 mm .053 Kg
7065 10 17 10 mm 3/8" 17 mm 23 mm 51.5 mm 43.5 mm 18 mm 31.5 mm 12.5 mm 17 mm .055 Kg
7065 10 21 10 mm 1/4" 17 mm 23 mm 51.5 mm 43.5 mm 18 mm 31.5 mm 12.5 mm 17 mm .059 Kg
7065 12 13 12 mm 1/4" 17 mm 23 mm 51.5 mm 43.5 mm 18 mm 35 mm 12.5 mm 17 mm .056 Kg
7065 12 17 12 mm 3/8" 17 mm 23 mm 51.5 mm 43.5 mm 18 mm 35 mm 12.5 mm 17 mm .059 Kg
7065 12 21 12 mm 1/4" 17 mm 23 mm 51.5 mm 43.5 mm 18 mm 35 mm 12.5 mm 17 mm .064 Kg

Pre-coated thread

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
