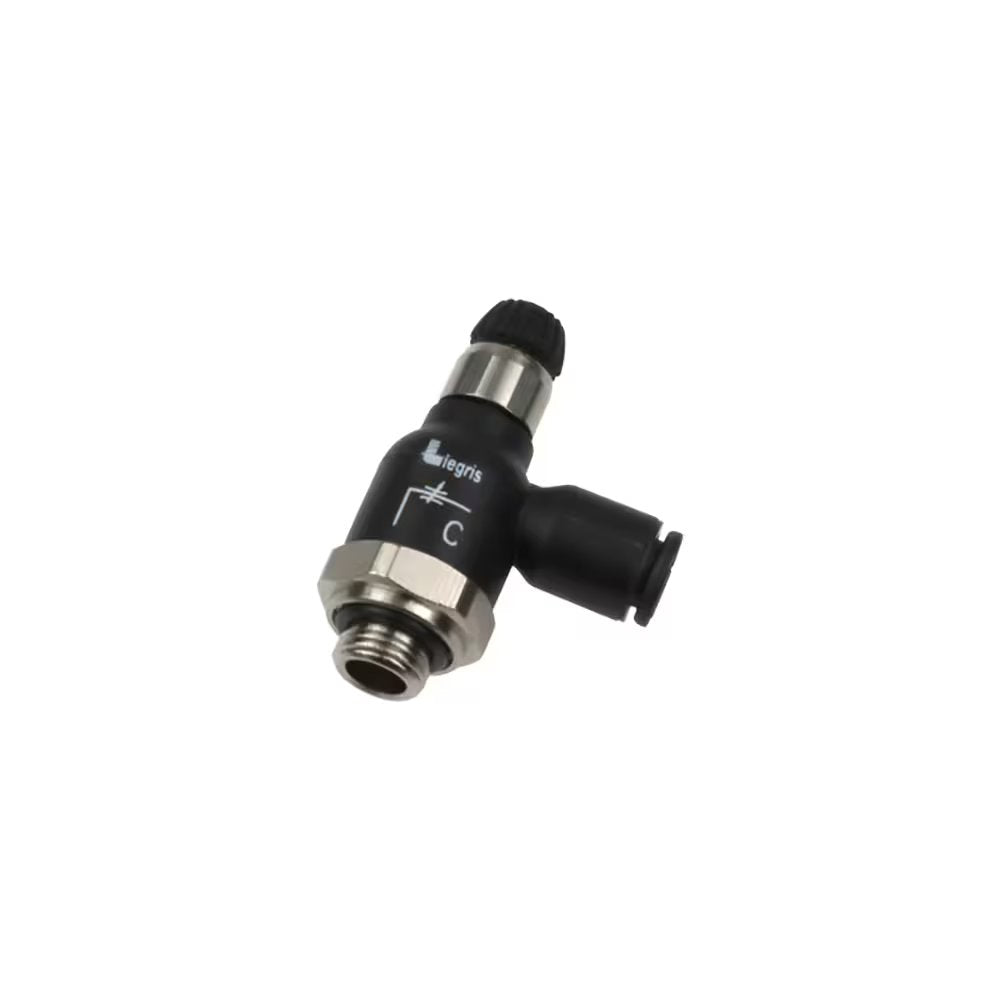

7062 08 17 by Parker | Legris Bi-Directional Compact Flow Regulator | 8mm Tube Size x 3/8" Male BSPP Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

7062 08 17 by Parker | Legris Bi-Directional Compact Flow Regulator | 8mm Tube Size x 3/8" Male BSPP Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$263.61

by Parker Hannifin
Flow Control Regulators:7062 Bi-Directional Compact Flow Regulator, Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $247.79
15–29 $224.07
30+ $197.71
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7061 Series
Shape:

90° Elbow

Ends Configuration:
  • 8mm Push-to-Connect
  • 3/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F F1 H H (max) H1 L L1 ØT Kg
7062 04 10 4 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .025 Kg
7062 06 10 6 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .025 Kg
7062 06 13 6 mm 1/4" 5.5 mm 10 mm 16 mm 36.5 mm 42.5 mm 15 mm 22 mm 9 mm 10 mm .025 Kg
7062 08 10 8 mm 1/8" 4.5 mm 14 mm 19 mm 41.5 mm 48 mm 18 mm 28 mm 10.5 mm 14 mm .043 Kg
7062 08 13 8 mm 1/4" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 18.5 mm 28 mm 10.5 mm 14 mm .046 Kg
7062 08 17 8 mm 3/8" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 17 mm 28 mm 11 mm 14 mm .042 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
