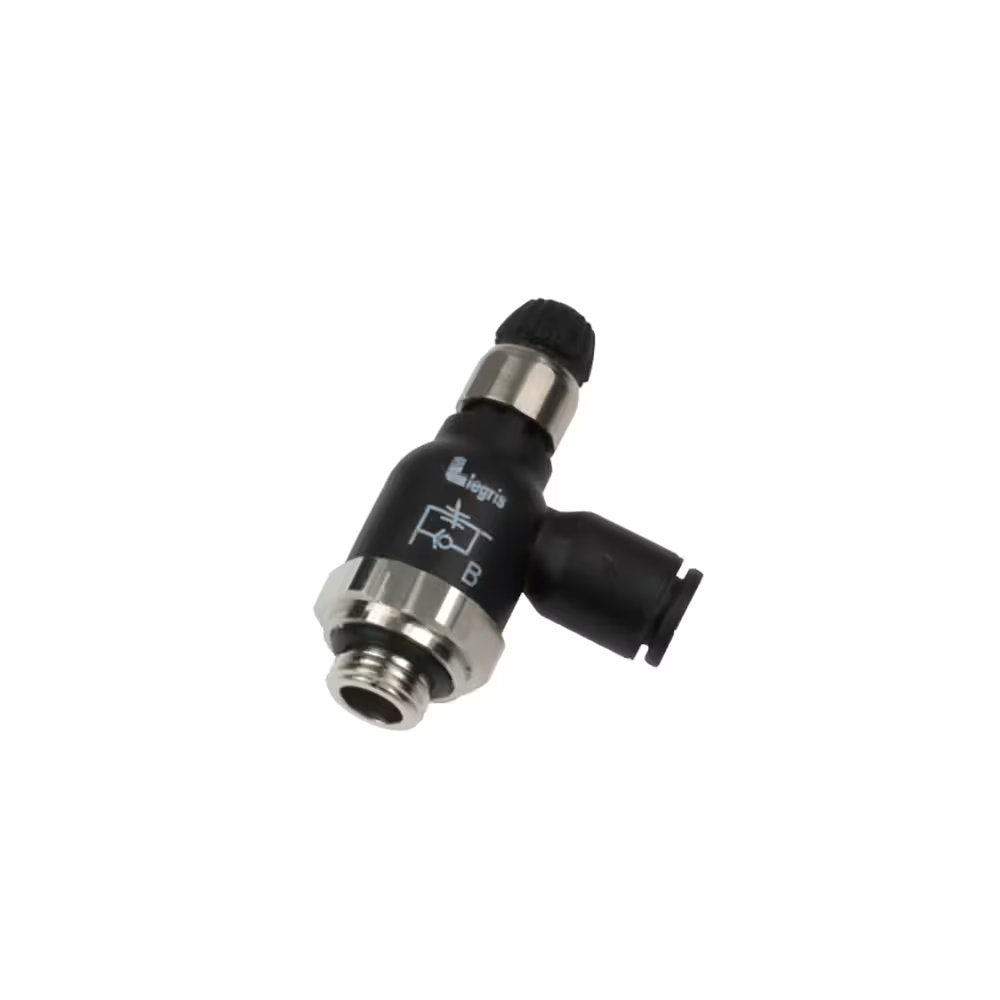

7061 10 13 by Parker | Legris Compact Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 23 mm Hex | 90° Elbow | Polymer | Pack of 5

7061 10 13 by Parker | Legris Compact Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 23 mm Hex | 90° Elbow | Polymer | Pack of 5

Sale price$187.57

by Parker Hannifin
Flow Control Regulators:7061 Compact Flow Regulator Supply, Male BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $176.32
30–59 $159.43
60+ $140.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7061 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F F1 H H (max) H1 L L1 ØT Kg
7061 04 10 4 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .020 Kg
7061 06 10 6 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .020 Kg
7061 06 13 6 mm 1/4" 5.5 mm 10 mm 16 mm 36.5 mm 42.5 mm 15 mm 22 mm 9 mm 10 mm .021 Kg
7061 08 10 8 mm 1/8" 4.5 mm 14 mm 19 mm 41.5 mm 48 mm 18 mm 28 mm 10.5 mm 14 mm .033 Kg
7061 08 13 8 mm 1/4" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 18.5 mm 28 mm 10.5 mm 14 mm .034 Kg
7061 08 17 8 mm 3/8" 5.5 mm 14 mm 23 mm 41.5 mm 48 mm 17 mm 28 mm 11 mm 14 mm .033 Kg
7061 10 13 10 mm 1/4" 5.5 mm 17 mm 23 mm 45.5 mm 53.5 mm 20 mm 31.5 mm 12.5 mm 17 mm .053 Kg
7061 10 17 10 mm 3/8" 5.5 mm 17 mm 23 mm 45.5 mm 54 mm 20 mm 31.5 mm 12.5 mm 17 mm .054 Kg
7061 12 21 12 mm 1/2" 7.5 mm 17 mm 24 mm 45.5 mm 54 mm 20 mm 35 mm 13 mm 17 mm .060 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
