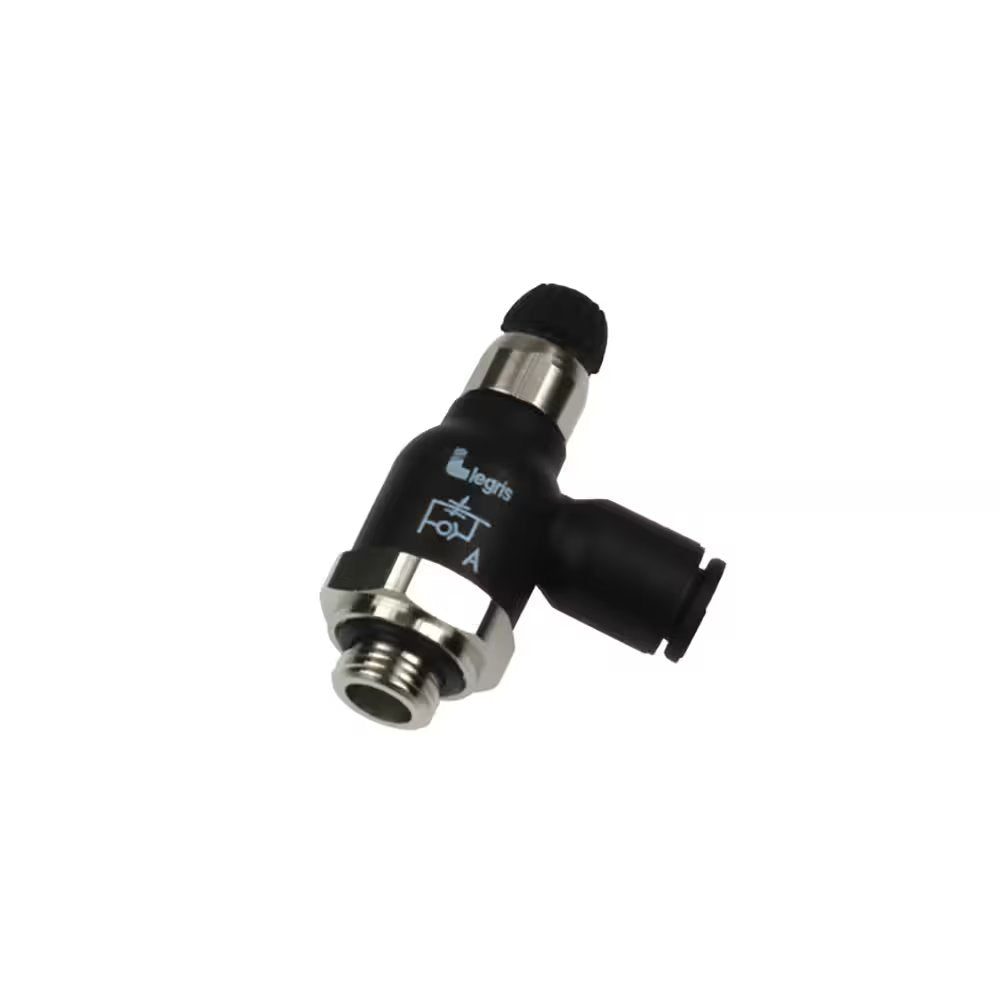

7060 12 17 by Parker | Legris Compact Flow Regulator | 12 mm Tube Size x 3/8" Male BSPP Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 5

7060 12 17 by Parker | Legris Compact Flow Regulator | 12 mm Tube Size x 3/8" Male BSPP Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 5

Sale price$274.48

by Parker Hannifin
Flow Control Regulators:7060 Compact Flow Regulator Exhaust, Male BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $258.01
15–29 $233.31
30+ $205.86
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7060 Series
Shape:

90° Elbow

Ends Configuration:
  • 12mm Push-to-Connect
  • 3/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F F1 H H (max) H1 L L1 ØT Kg
7060 04 10 4 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .020 Kg
7060 06 10 6 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .020 Kg
7060 06 13 6 mm 1/4" 5.5 mm 10 mm 16 mm 36.5 mm 42.5 mm 15 mm 22 mm 9 mm 10 mm .020 Kg
7060 08 10 8 mm 1/8" 4.5 mm 14 mm 19 mm 41.5 mm 48 mm 18 mm 28 mm 10.5 mm 14 mm .032 Kg
7060 08 13 8 mm 1/4" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 18.5 mm 28 mm 10.5 mm 14 mm .034 Kg
7060 08 17 8 mm 3/8" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 17 mm 28 mm 11 mm 14 mm .034 Kg
7060 10 13 10 mm 1/4" 5.5 mm 17 mm 23 mm 45.5 mm 53.5 mm 20 mm 31.5 mm 12.5 mm 17 mm .053 Kg
7060 10 17 10 mm 3/8" 5.5 mm 17 mm 23 mm 45.5 mm 54 mm 20 mm 31.5 mm 12.5 mm 17 mm .054 Kg
7060 12 17 12 mm 3/8" 5.5 mm 17 mm 23 mm 45.5 mm 54 mm 20 mm 35 mm 12.5 mm 17 mm .056 Kg
7060 12 21 12 mm 1/2" 7.5 mm 17 mm 24 mm 45.5 mm 54 mm 20 mm 35 mm 13 mm 17 mm .058 Kg
