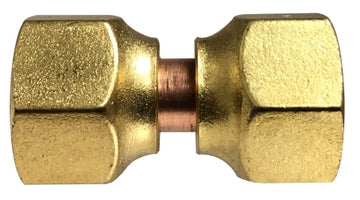

704075-0604 by Midland | Lead Free 45° SAE Flare Fitting | Forged Swivel | 3/8" Female Flare UNF x 1/4" Female Flare UNF | Brass | Replaces: 10487LF / 10-487LF

704075-0604 by Midland | Lead Free 45° SAE Flare Fitting | Forged Swivel | 3/8" Female Flare UNF x 1/4" Female Flare UNF | Brass | Replaces: 10487LF / 10-487LF

Sale price$10.95

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Female Forged Swivel

In stock
Buy More, Save More!
Quantity Price Each
10–39 $10.29
40–79 $9.31
80+ $8.21
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 1/4in Female SAE 45 Flare
Material(s):
  • Lead Free Brass

SPECIFICATIONS

Applications: Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines Used With: Copper, Brass, Aluminum, or Steel Tubing
Temperature Range: -40°F to +250°F Conformance: Meet functional requirements for SAE, ASME and ASA codes for pressure piping.
Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Two pieces construction - nut and body.
  • Resists mechanical pullout.
  • Easy to disassemble and can be reassembled many times, with no effect on the seal.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 11/16-14 1-1/4-12 1 3/8-12
Crossover Series:
LF700
Part Number Female Flare UNF x Female Flare UNF
704070-04 1/4" x 1/4"
704070-05 5/16" x 5/16"
704070-06 3/8" x 3/8"
704070-08 1/2" x 1/2"
704070-10 5/8" x 5/8"
704075-0604 3/8" x 1/4"
704075-0806 1/2" x 3/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
