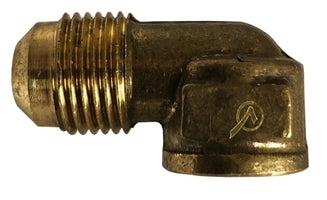

704050-0812 by Midland | Lead Free 45° SAE Flare Fitting | 1/2" Male Flare x 3/4" Female Pipe | 90° Elbow | Brass | Replaces: 10326LF
Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Female 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.92 |
| 40–79 | $18.91 |
| 80+ | $16.69 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Applications: | Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines | Used With: | Copper, Brass, Aluminum, or Steel Tubing |
|---|---|---|---|
| Temperature Range: | -40°F to +250°F | Conformance: |
Meet functional requirements for SAE, ASME and ASA codes for pressure piping. Meets specifications and standards in Section 1417 of the Safe Drinking Water Act. |
| Lead Free: | Yes. Lead Free Info (PDF) |
| Features: | |||
|---|---|---|---|
|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" | 1" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 11/16-14 | 1-1/4-12 | 1 3/8-12 |
| Part Number | Male Flare x Female Pipe | |
|---|---|---|
| 704050-0402 | 1/4" x 1/8" | |
| 704050-0404 | 1/4" x 1/4" | |
| 704050-0604 | 3/8" x 1/4" | |
| 704050-0606 | 3/8" x 3/8" | |
| 704050-0608 | 3/8" x 1/2" | |
| 704050-0612 | 3/8" x 3/4" | |
| 704050-0806 | 1/2" x 3/8" | |
| 704050-0808 | 1/2" x 1/2" | |
| 704050-0812 | 1/2" x 3/4" | |
| 704050-1008 | 5/8" x 1/2" | |
| 704050-1012 | 5/8" x 3/4" | |
| 704050-1212 | 3/4" x 3/4" |
