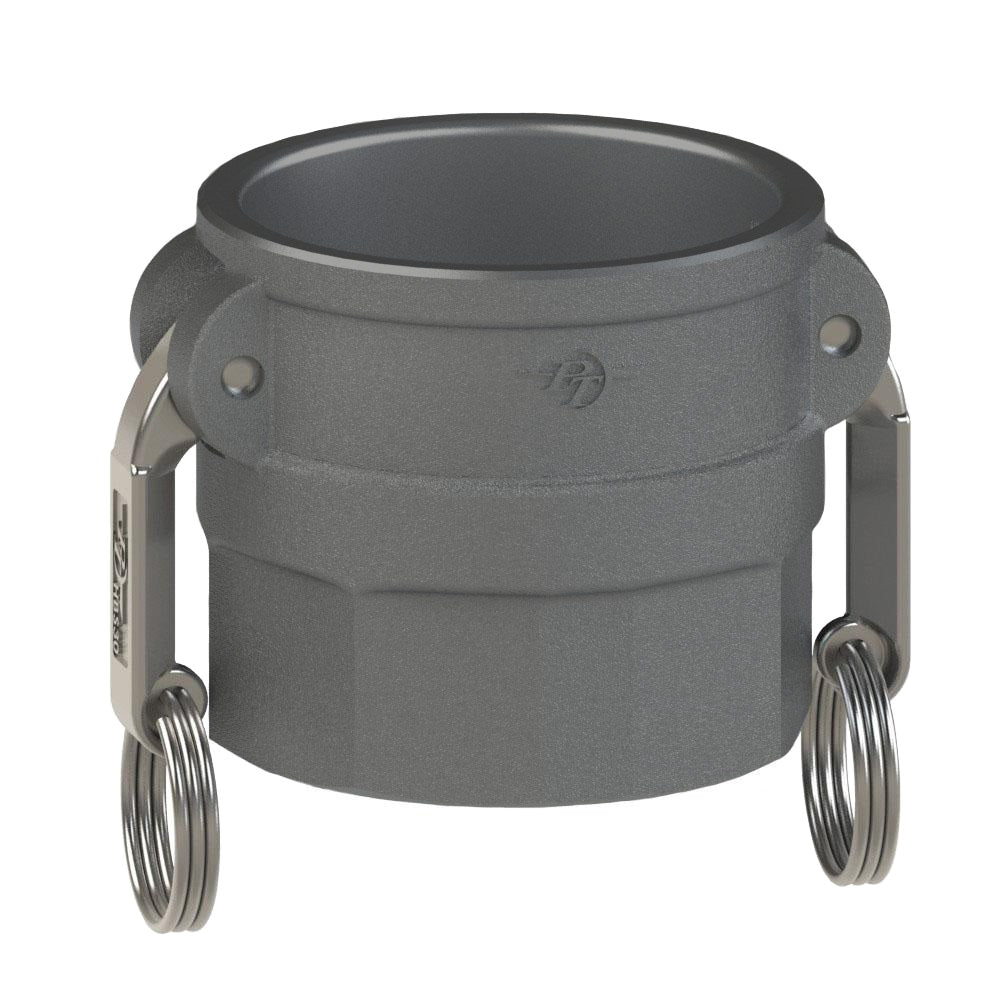

70393025 (30X25DFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type DFH | 3" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM & Buna-N Seals

70393025 (30X25DFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type DFH | 3" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM & Buna-N Seals

Sale price$121.42

PT Coupling
Cam & Groove (Camlock) Adapter | Type DFH | Coupler x Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $114.13
20–59 $103.21
60+ $91.07
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 3in Female Cam & Groove
  • 2-1/2in Female NST
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15DFH 70391500 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 250 PSI
30X25DFH 70393025 3" 2-1/2" 9.56" 5.46" 3.50" 2.88" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
