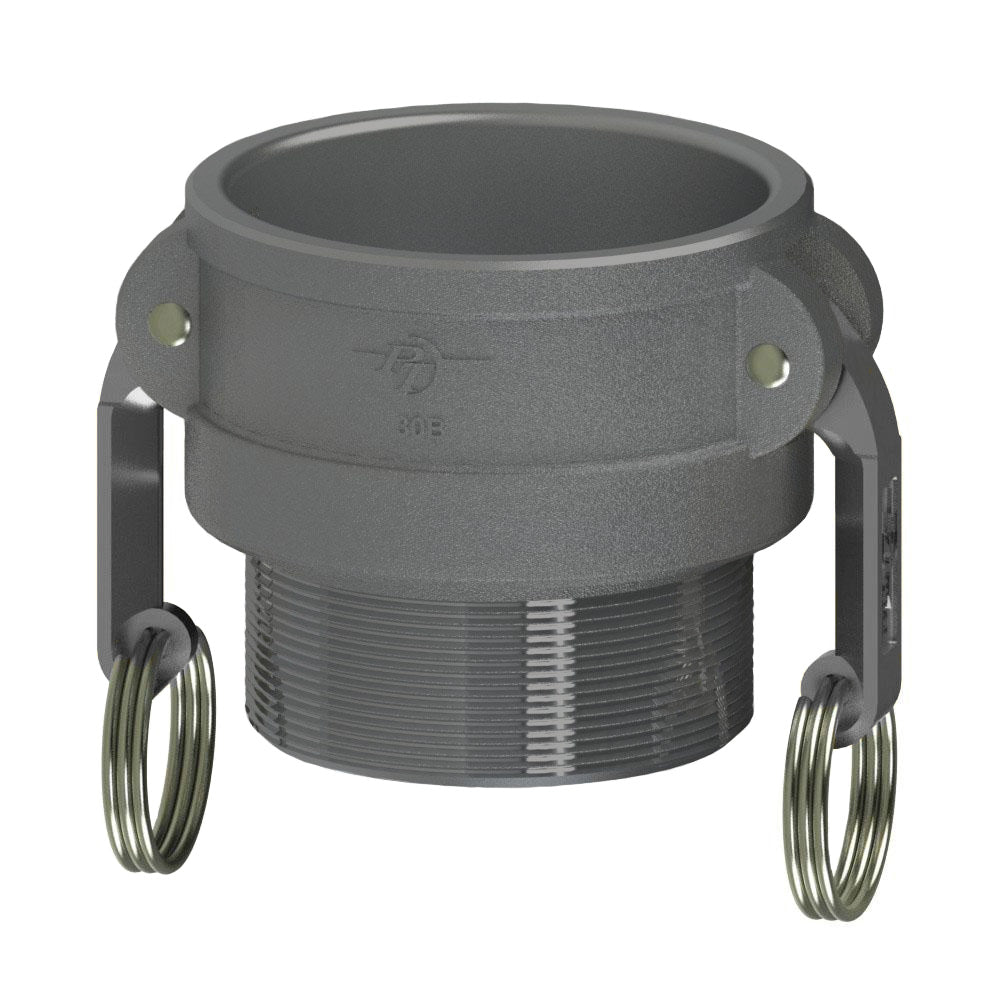

70383025 (30X25BFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type BFH | 3" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Hard Coat Aluminum | Buna-N Seal

70383025 (30X25BFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type BFH | 3" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Hard Coat Aluminum | Buna-N Seal

Sale price$119.58
Buy more, save moreDiscounts applied in cart/checkout.
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Comes Standard with Buna N cam gasket.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Male Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Outside
Diameter
(B)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
30X25BFH 70383025 3" 2-1/2" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 3in Female Cam & Groove
  • 2-1/2in Male NST

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
