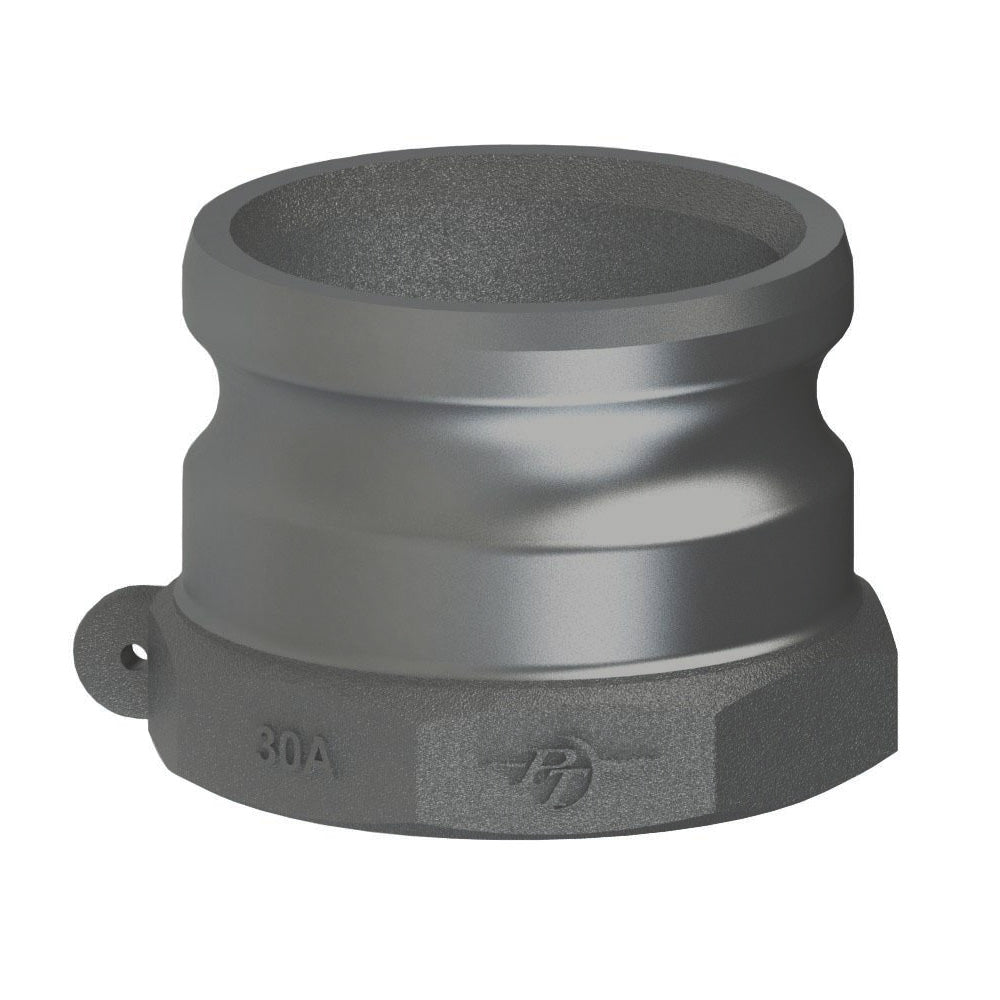

70373025 (30X25AFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type AFH | 3" Adapter x 2-1/2" Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM Seal

70373025 (30X25AFH) by PT-Coupling | Reducing Cam & Groove Adapter | Type AFH | 3" Adapter x 2-1/2" Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM Seal

Sale price$81.94

PT Coupling
Cam & Groove (Camlock) Adapter | Type AFH | Adapter x Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $77.02
20–59 $69.65
60+ $61.46
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 3in Male Cam & Groove
  • 2-1/2in Female NST
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Comes standard with EPDM NH Thread Gasket
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Female Fire Hose
Thread (NH)
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
30X25AFH 70373025 3" 2-1/2" 2.84" 2.80" 4.22" 0.44" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
