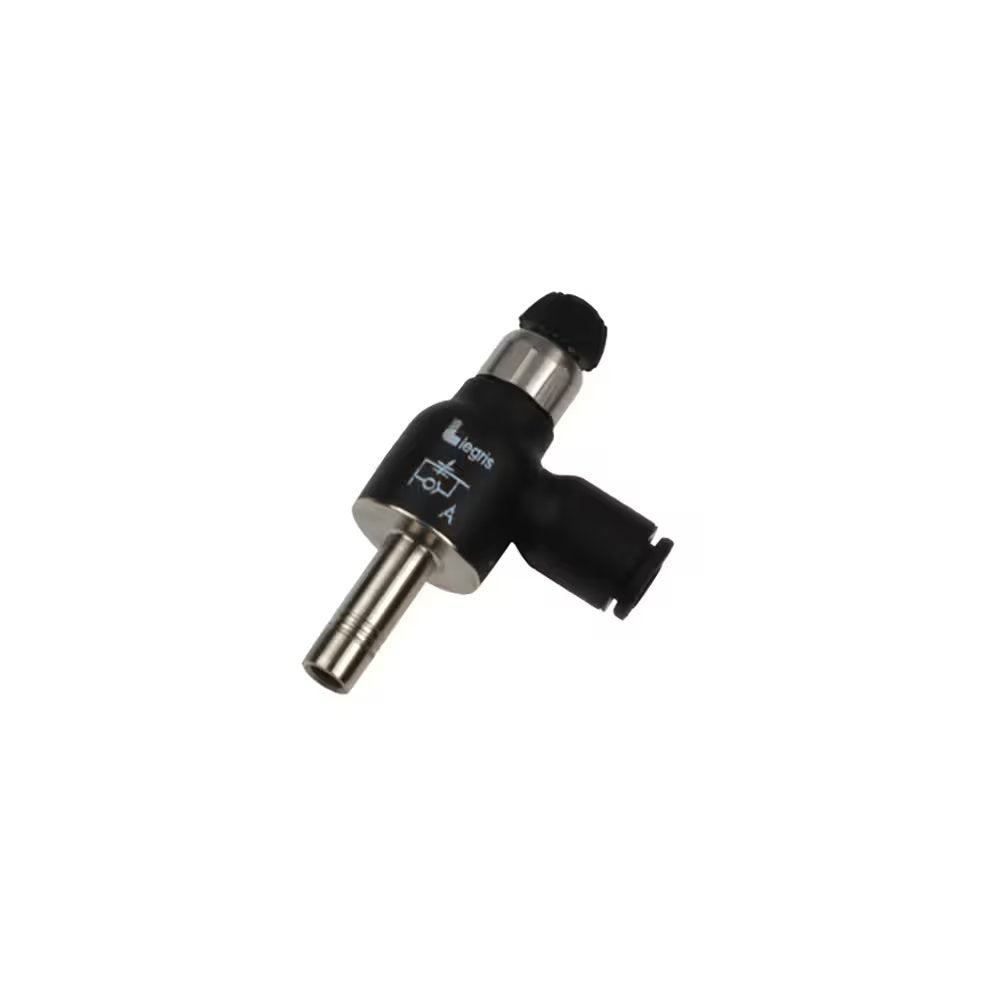

7030 06 00 by Parker | Legris Compact Plug-In Flow Regulator | 6mm Tube Size | 58mm Max Length | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
Flow Control Regulators:7030 Compact Plug-In Flow Regulator, Exhaust
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $193.53 |
| 30–59 | $175.00 |
| 60+ | $154.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | F | G | H (max) | H (min) | H1 | H2 | L | Kg |
| 7030 06 00 | 6 mm | 10 mm | 16 mm | 41 mm | 35 mm | 14 mm | 17 mm | 22 mm | .013 Kg |
| 7030 08 00 | 8 mm | 14 mm | 19 mm | 46.5 mm | 39.5 mm | 16 mm | 21.5 mm | 28 mm | .022 Kg |
| 7030 12 00 | 12 mm | 17 mm | 23 mm | 51 mm | 43 mm | 17 mm | 27 mm | 35 mm | .044 Kg |
