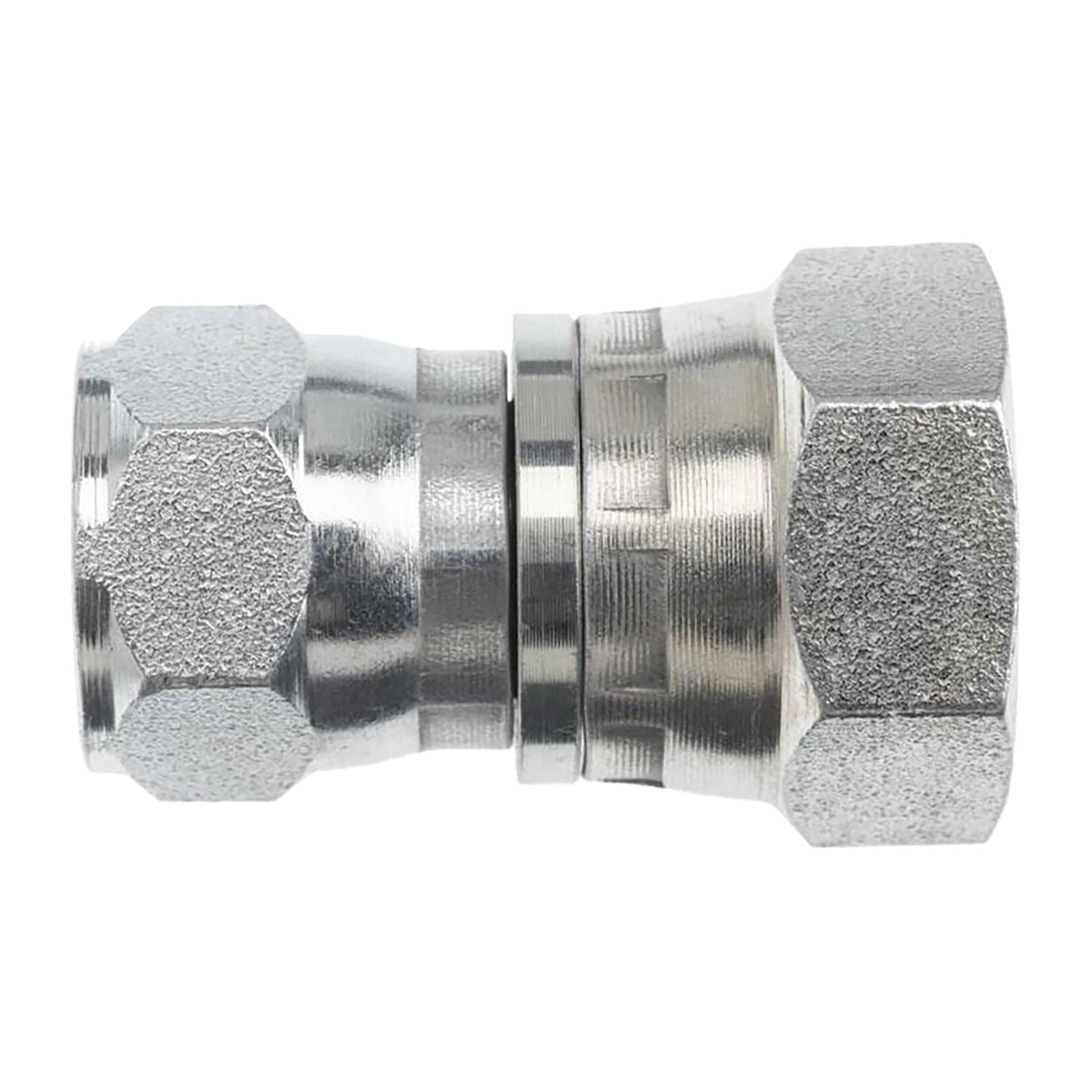

7023-06-04 by Midland | Hydraulic Adapter | 3/8" Female 37° JIC Swivel x 1/4" Female BSPP Swivel | Steel
Midland Industries
Hydraulic Adapters: JIC Swivel to BSPP Straight Swivel - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.37 |
| 40–79 | $7.57 |
| 80+ | $6.68 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
Special Properties:
| Technical Info: | |||
|---|---|---|---|
 |
||||
|---|---|---|---|---|
| Part Number | Female JIC 37° Flare Swivel (1) |
Female JIC 37° Flare Swivel Thread (1) |
Female BSPP Swivel (2) |
Female BSPP Swivel Thread (2) |
| 7023-04-04 | 1/4" | 7/16-20 | 1/4" | 1/4-19 |
| 7023-04-06 | 1/4" | 7/16-20 | 3/8" | 3/8-19 |
| 7023-06-04 | 3/8" | 9/16-18 | 1/4" | 1/4-19 |
| 7023-06-06 | 3/8" | 9/16-18 | 3/8" | 3/8-19 |
| 7023-06-08 | 3/8" | 9/16-18 | 1/2" | 1/2-14 |
| 7023-08-06 | 1/2" | 3/4-16 | 3/8" | 3/8-19 |
| 7023-08-08 | 1/2" | 3/4-16 | 1/2" | 1/2-14 |
| 7023-08-12 | 1/2" | 3/4-16 | 3/4" | 3/4-14 |
| 7023-10-10 | 5/8" | 7/8-14 | 5/8" | 5/8-14 |
| 7023-12-12 | 3/4" | 1-1/16-12 | 3/4" | 3/4-14 |
| 7023-12-16 | 3/4" | 1-1/16-12 | 1" | 1-11 |
| 7023-16-12 | 1" | 1-5/16-12 | 3/4" | 3/4-14 |
| 7023-16-16 | 1" | 1-5/16-12 | 1" | 1-11 |
