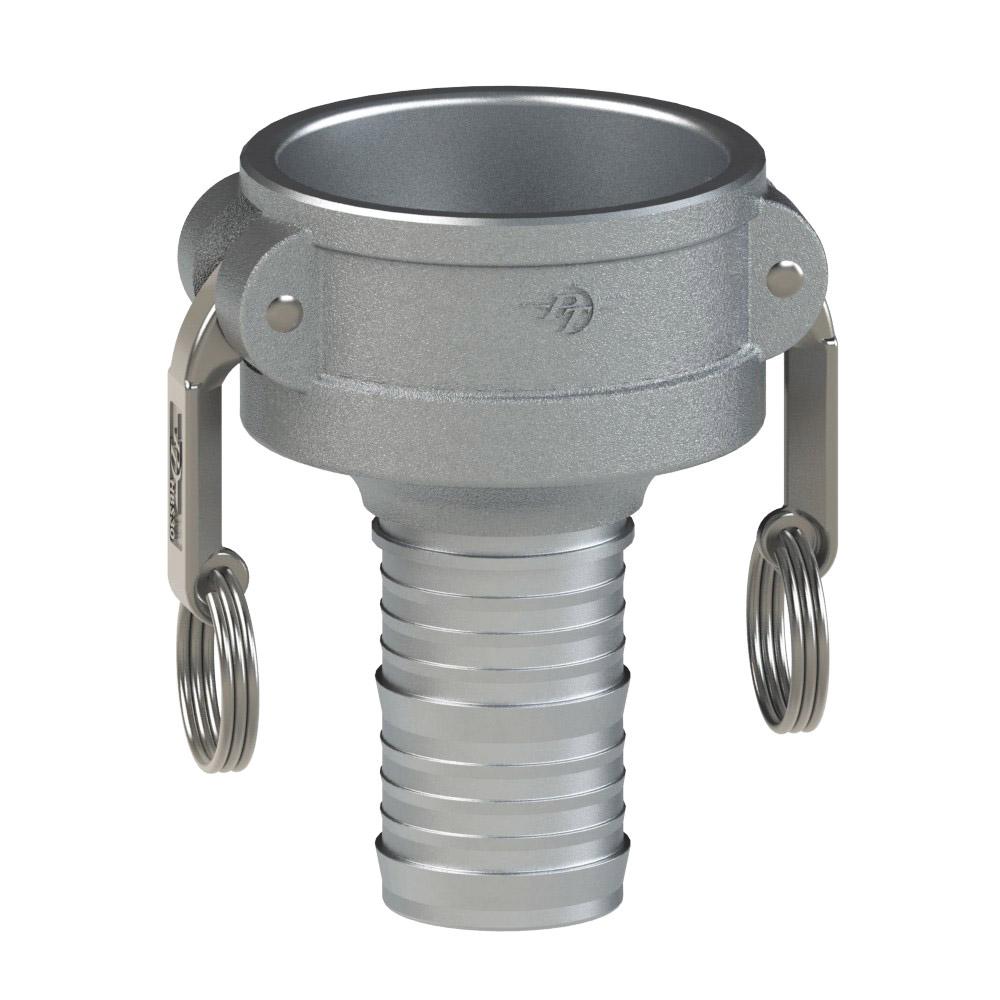

70223025 (30X25C) by PT-Coupling | Reducing Cam & Groove Fitting | Type C | 3" Coupler x 2-1/2" Hose Shank | Hard Coat Aluminum | Buna-N Seal
PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Hard Coat Aluminum | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $103.00 |
| 20–59 | $93.13 |
| 60+ | $82.18 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Hose Shank Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15X10C | 70221510 | 1-1/2" | 1" | 250 PSI |
| 20X15C | 70222015 | 2" | 1-1/2" | 250 PSI |
| 20X25C | 70222025 | 2" | 2-1/2" | 200 PSI |
| 30X20C | 70223020 | 3" | 2" | 200 PSI |
| 30X25C | 70223025 | 3" | 2-1/2" | 200 PSI |
| 40X20C | 70224020 | 4" | 2" | 150 PSI |
| 40X30C | 70224030 | 4" | 3" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
