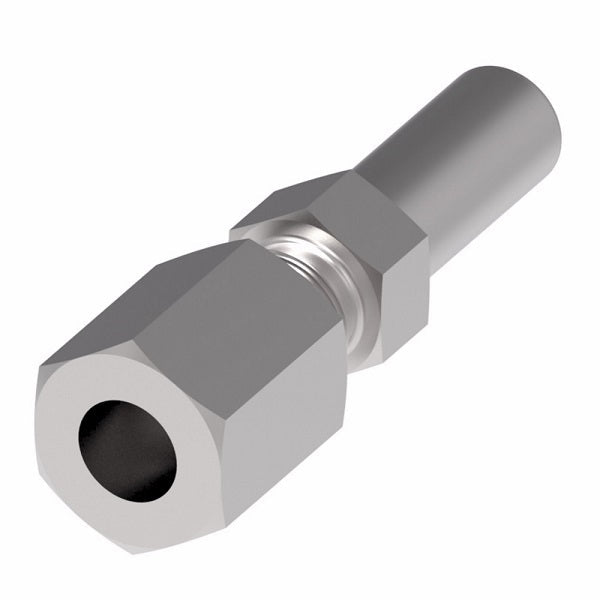

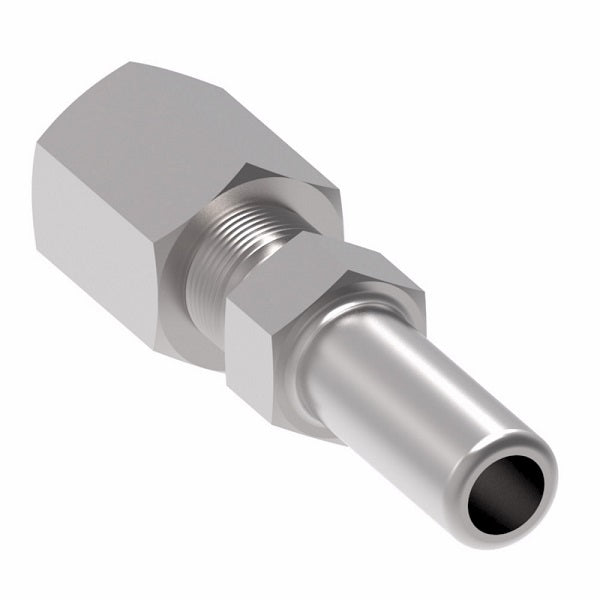

7015X6X4 Ermeto by Danfoss | 7000 Series | Tube Reducer | 3/8" Tube x 1/4" Tube | Steel
7015X6X4 Ermeto by Danfoss | 7000 Series | Tube Reducer | 3/8" Tube x 1/4" Tube | Steel
7015X6X4 Ermeto by Danfoss | 7000 Series | Tube Reducer | 3/8" Tube x 1/4" Tube | Steel

7015X6X4 Ermeto by Danfoss | 7000 Series | Tube Reducer | 3/8" Tube x 1/4" Tube | Steel

Sale price$24.88
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080123
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Body Size T Tube Size T Hex C L
7015X6X4 3/8" 1/4" 1/2" 1.61"
7015X8X4 1/2" 1/4" 9/16" 1.73"
7015X8X6 1/2" 3/8" 5/8" 1.77"
7015X10X8 5/8" 1/2" 1-3/16" 1.96"
7015X12X6 3/4" 3/8" 1-3/16" 1.93"
7015X12X8 3/4" 1/2" 1-3/16" 2.03"
7015X20X16 1-1/4" 1" 1-3/8" 2.28"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Tube Compression
  • 1/4in Tube Compression
Material(s):
  • Steel
