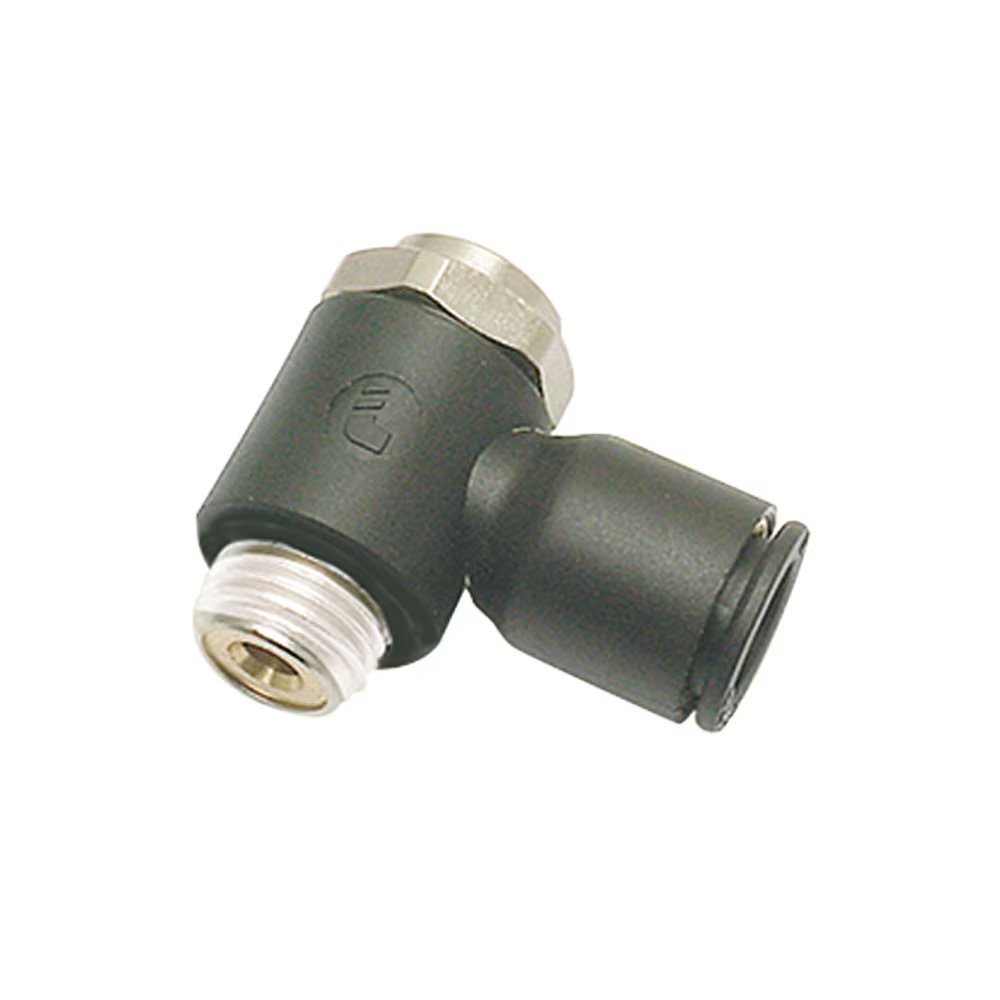

7015 60 18 by Parker | Pneumatic Legris Flow Control Regulators | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 90° Elbow | Polymer | Pack of 5

7015 60 18 by Parker | Pneumatic Legris Flow Control Regulators | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 90° Elbow | Polymer | Pack of 5

Sale price$225.03

by Parker Hannifin
Pneumatic Flow Control Regulators:Regulators with Knobless Adjustment

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $211.53
30–59 $191.28
60+ $168.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7015 Series
Shape:

90° Elbow

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Male NPT
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number Push-to-Connect Size NPT Thread Kg
7015 08 11 8 mm 1/8" .02 Kg
7015 08 14 8 mm 1/4" .035 Kg
7015 53 11 1/8" 1/8" .017 Kg
7015 56 11 1/4" 1/8" .019 Kg
7015 60 14 3/8" 1/4" .038 Kg
7015 60 18 3/8" 3/8" .043 Kg
