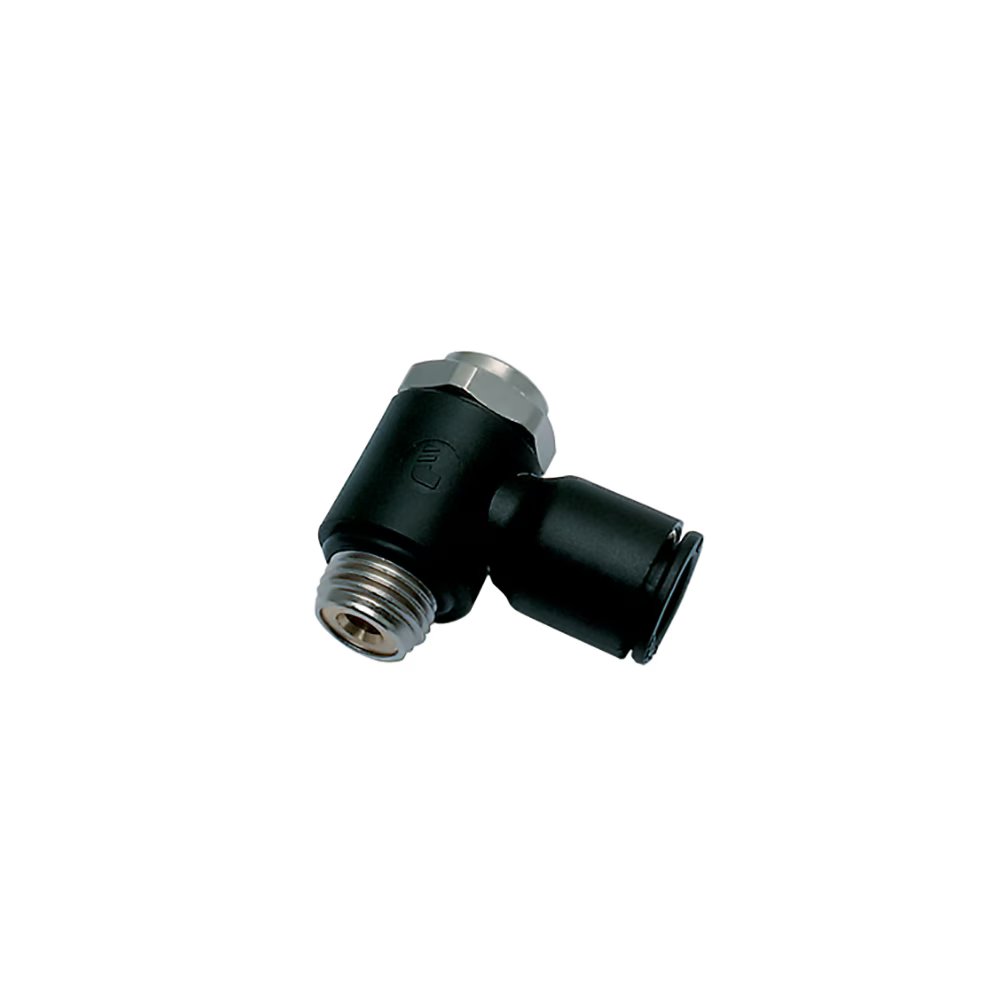

7011 08 10 by Parker | Legris Flow Regulator | 8mm Tube Size x 1/8" Male BSPP Thread | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
Flow Control Regulators:7011 Flow Regulator Male BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $176.82 |
| 30–59 | $159.89 |
| 60+ | $141.08 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | L | L1 | Kg |
| 7011 04 19 | 4 mm | M5x0.8 | 4 mm | 8 mm | 17.5 mm | 17 mm | 5 mm | .006 Kg |
| 7011 04 10 | 4 mm | 1/8" | 5 mm | 13 mm | 25 mm | 19 mm | 7 mm | .017 Kg |
| 7011 06 19 | 6 mm | M5x0.8 | 4 mm | 8 mm | 17.5 mm | 17 mm | 5 mm | .006 Kg |
| 7011 06 10 | 6 mm | 1/8" | 5 mm | 13 mm | 25 mm | 21 mm | 7 mm | .018 Kg |
| 7011 06 13 | 8 mm | 1/4" | 8 mm | 17 mm | 26.5 mm | 22 mm | 9.5 mm | .034 Kg |
| 7011 08 10 | 8 mm | 1/8" | 5 mm | 13 mm | 25 mm | 26 mm | 7 mm | .019 Kg |
| 7011 08 13 | 8 mm | 1/4" | 8 mm | 17 mm | 26.5 mm | 27 mm | 9.5 mm | .034 Kg |
| 7011 08 17 | 8 mm | 3/8" | 7.5 mm | 20 mm | 37.5 mm | 29 mm | 11 mm | .067 Kg |
| 7011 10 13 | 10 mm | 1/4" | 8 mm | 17 mm | 26.5 mm | 29 mm | 9.5 mm | .036 Kg |
| 7011 10 17 | 10 mm | 3/8" | 7.5 mm | 20 mm | 37.5 mm | 31 mm | 11 mm | .068 Kg |
