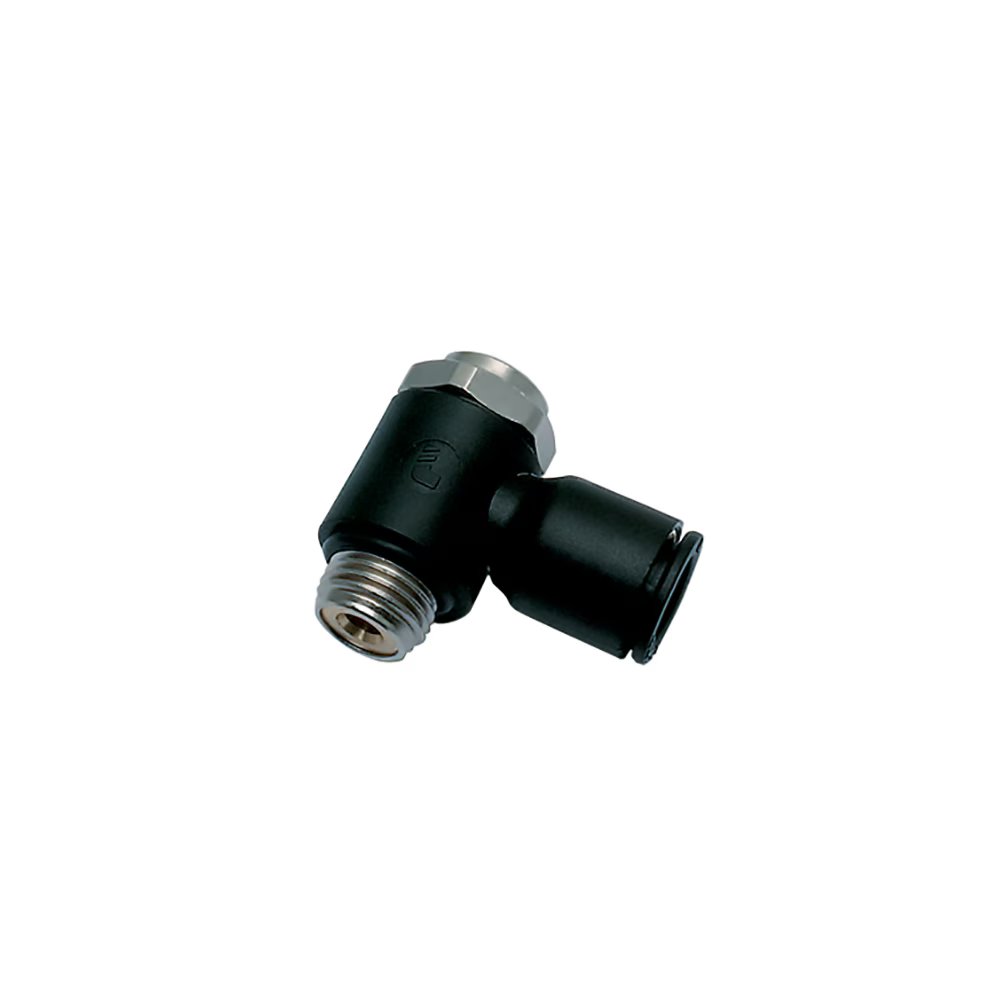

7010 10 13 by Parker | Legris Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer | Pack of 10

7010 10 13 by Parker | Legris Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer | Pack of 10

Sale price$248.76

by Parker Hannifin
Flow Control Regulators:7010 Flow Regulator Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $233.83
30–59 $211.45
60+ $186.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7010 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F H L L1 Kg
7010 04 19 4 mm M5x0.8 4 mm 8 mm 17.5 mm 17 mm 5 mm .006 Kg
7010 04 10 4 mm 1/8" 5 mm 13 mm 25 mm 19 mm 7 mm .017 Kg
7010 06 19 6 mm M5x0.8 4 mm 8 mm 17.5 mm 19 mm 5 mm .006 Kg
7010 06 10 6 mm 1/8" 5 mm 13 mm 25 mm 21 mm 7 mm .018 Kg
7010 06 13 6 mm 1/4" 8 mm 17 mm 26.5 mm 22 mm 9.5 mm .034 Kg
7010 08 10 8 mm 1/8" 5 mm 13 mm 25 mm 26 mm 7 mm .019 Kg
7010 08 13 8 mm 1/4" 8 mm 17 mm 26.5 mm 27 mm 9.5 mm .035 Kg
7010 08 17 8 mm 3/8" 7.5 mm 20 mm 37.5 mm 29 mm 11 mm .068 Kg
7010 10 13 10 mm 1/4" 8 mm 17 mm 26.5 mm 29 mm 9.5 mm .035 Kg
7010 10 17 10 mm 3/8" 7.5 mm 20 mm 37.5 mm 31 mm 11 mm .067 Kg
7010 10 21 10 mm 1/2" 8 mm 23 mm 43 mm 37 mm 13.5 mm .117 Kg
7010 12 17 12 mm 3/8" 7.5 mm 20 mm 37.5 mm 34.5 mm 11 mm .069 Kg
7010 12 21 12 mm 1/2" 8 mm 23 mm 43 mm 37 mm 13.5 mm .108 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
