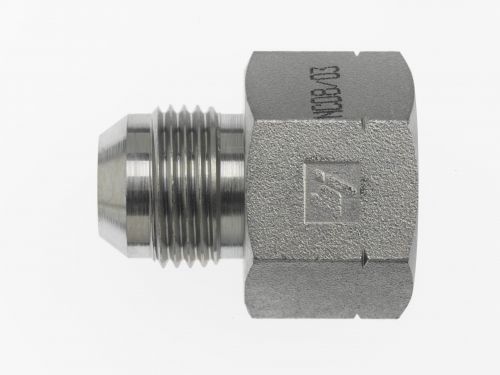

7009-F-04-14 by Brennan Inc. | -04 Male JIC x -14 Female Komatsu Rigid | Straight | Steel

7009-F-04-14 by Brennan Inc. | -04 Male JIC x -14 Female Komatsu Rigid | Straight | Steel

Sale price$12.68

Brennan Inc.
Conversion Adapters: 7009-F - Male JIC x Female Komatsu Straight
Buy More, Save More!
Quantity Price Each
10–39 $11.92
40–79 $10.78
80+ $9.51
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male JIC
  • 7/8in Female Komatsu
Material(s):
  • Steel
Part Number Material TubeO.D B1JIC 37° B2FK B1Drill LLength C1Hex
7009-F-04-14 Steel 1/4" 7/16-20" M14X1.5 4.40mm 34.00mm 19.10mm
7009-F-06-18 Steel 3/8" 9/16-18" M18X1.5 7.50mm 36.80mm 24.00mm
7009-F-08-22 Steel 1/2" 3/4-16" M22X1.5 9.90mm 42.50mm 27.00mm
7009-F-10-24 Steel 5/8" 7/8-14" M24X1.5 12.30mm 41.90mm 31.80mm
7009-F-12-30 Steel 3/4" 1-1/16-12" M30X1.5 15.20mm 79.40mm 36.00mm
7009-F-16-33 Steel 1" 1-5/16-12" M33X1.5 21.40mm 54.60mm 41.30mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
