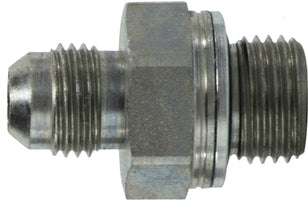

7005414 by Midland | Hydraulic Metric Connector | 7/16-20 Male JIC 37° Flare x 14x1.5 Male Metric | Steel
Midland Industries
Hydraulic Metric Adapters: Metric Male Connector - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.20 |
| 40–79 | $9.22 |
| 80+ | $8.14 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Note: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||
|---|---|---|
| 7400 | 30J (R) | 7011 |
 |
||
|---|---|---|
| Part Number | Male JIC 37° Flare Thread (1) |
Male Metric Thread (2) |
| 7005410 (7005-4-10) |
7/16-20 | 10x1.0 |
| 7005412 (7005-4-12) |
7/16-20 | 12x1.5 |
| 7005414 (7005-4-14) |
7/16-20 | 14x1.5 |
| 7005518 (7005-5-18) |
7/16-20 | 18x1.5 |
| 7005512 (7005-5-12) |
1/2-20 | 12x1.5 |
| 7005514 (7005-5-14) |
1/2-20 | 14x1.5 |
| 7005614 (7005-6-14) |
9/16-18 | 14x1.5 |
| 7005616 (7005-6-16) |
9/16-18 | 16x1.5 |
| 7005618 (7005-6-18) |
9/16-18 | 18x1.5 |
| 7005816 (7005-8-16) |
3/4-16 | 16x1.5 |
| 7005818 (7005-8-18) |
3/4-16 | 18x1.5 |
| 7005822 (7005-8-22) |
3/4-16 | 22x1.5 |
| 70051018 (7005-10-18) |
7/8-14 | 18x1.5 |
| 70051020 (7005-10-20) |
7/8-14 | 20x1.5 |
| 70051022 (7005-10-22) |
7/8-14 | 22x1.5 |
| 70051222 (7005-12-22) |
1-1/16-12 | 22x1.5 |
| 70051227 (7005-12-27) |
1-1/16-12 | 27x2 |
