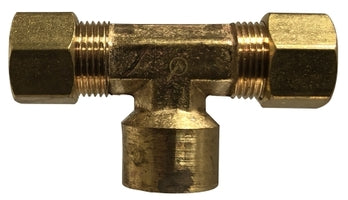

700078-0602 by Midland | Lead Free Compression Fitting | Branch | 3/8" Tube OD x 3/8" Tube OD x 1/8" Female Pipe | Tee | Brass | Replaces: 18325LF
Midland Industries
Lead Free Brass Fitting - Compression Fitting - Female Branch Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.48 |
| 40–79 | $12.19 |
| 80+ | $10.76 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Applications: | Water, Gasoline, Oil, and Vacuum Lines. | Used With: | Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert) |
|---|---|---|---|
| Temperature Range: | -40°F to +250°F | Conformance: | Meets specifications and standards in Section 1417 of the Safe Drinking Water Act. |
| Lead Free: | Yes. Lead Free Info (PDF) |
| Features: | |||
|---|---|---|---|
|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" |
|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | 5/16-24 | 3/8-24 | 7/16-24 | 1/2-24 | 9/16-24 | 5/8-24 | 11/16-20 | 13/16-18 | 1-18 | 1-1/8-18 |
| Part Number | Tube OD x Tube OD x Female Pipe | |
|---|---|---|
| 700078-0602 | 3/8" x 3/8" x 1/8" | |
| 700078-0606 | 3/8" x 3/8" x 3/8" |
