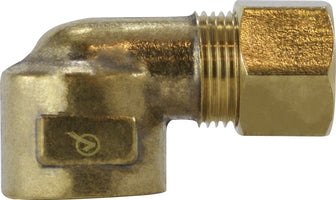

700070-0602 by Midland | Lead Free Compression Fitting | 3/8" Tube OD x 1/8" Female Pipe | Tee | 90° Elbow | Replaces: 18257LF
Minimum Order Quantity: 5 Units
Midland Industries
Lead Free Brass Fitting - Compression Fitting - Female 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $8.14 |
| 40–79 | $7.36 |
| 80+ | $6.50 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Applications: | Water, Gasoline, Oil, and Vacuum Lines. | Used With: | Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert) |
|---|---|---|---|
| Temperature Range: | -40°F to +250°F | Conformance: | Meets specifications and standards in Section 1417 of the Safe Drinking Water Act. |
| Lead Free: | Yes. Lead Free Info (PDF) |
| Features: | |||
|---|---|---|---|
|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" |
|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | 5/16-24 | 3/8-24 | 7/16-24 | 1/2-24 | 9/16-24 | 5/8-24 | 11/16-20 | 13/16-18 | 1-18 | 1-1/8-18 |
| Part Number | Tube OD x Female Pipe |
|---|---|
| 700070-0202 | 1/8" x 1/8" |
| 700070-0402 | 1/4" x 1/8" |
| 700070-0404 | 1/4" x 1/4" |
| 700070-0406 | 1/4" x 3/8" |
| 700070-0408 | 1/4" x 1/2" |
| 700070-0502 | 5/16" x 1/8" |
| 700070-0504 | 5/16" x 1/4" |
| 700070-0602 | 3/8" x 1/8" |
| 700070-0604 | 3/8" x 1/4" |
| 700070-0606 | 3/8" x 3/8" |
| 700070-0608 | 3/8" x 1/2" |
| 700070-0806 | 1/2" x 3/8" |
| 700070-0808 | 1/2" x 1/2" |
| 700070-1008 | 5/8" x 1/2" |
