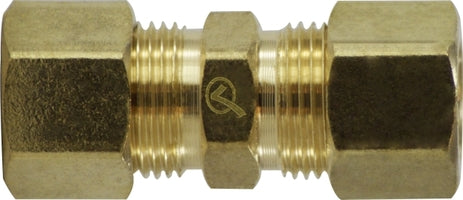

700062-03 by Midland | Lead Free Compression Fitting | Union | 3/16" Tube OD x 3/16" Tube OD | Brass | Replaces: 18063LF / 18-063LF
Midland Industries

700062-03 by Midland | Lead Free Compression Fitting | Union | 3/16" Tube OD x 3/16" Tube OD | Brass | Replaces: 18063LF / 18-063LF

Sale price$3.59

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Union

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/16in Tube Compression
  • 3/16in Tube Compression
  • Some Ends Match
Material(s):
  • Lead Free Brass

SPECIFICATIONS

Applications: Water, Gasoline, Oil, and Vacuum Lines. Used With: Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range: -40°F to +250°F Conformance: Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Three piece construction- nut, sleeve (or ferrule) and body.
  • Easy to disassemble, no flaring tool required.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/8-18
Crossover Series:
LF262 M-62
Part Number Tube OD x Tube OD
700062-02 1/8" x 1/8"
700062-03 3/16" x 3/16"
700062-04 1/4" x 1/4"
700062-05 5/16" x 5/16"
700062-06 3/8" x 3/8"
700062-07 7/16" x 7/16"
700062-08 1/2" x 1/2"
700062-10 5/8" x 5/8"
700062-12 3/4" x 3/4"
700062-14 7/8" x 7/8"
