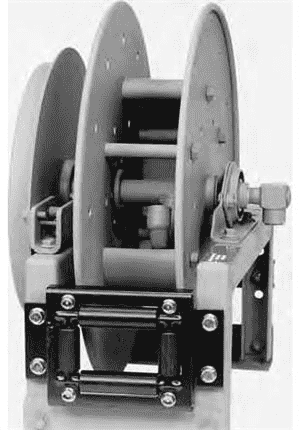

718-30-31-20D by Hannay | #42-56 | 700 Series | Spring Rewind Reel

718-30-31-20D by Hannay | #42-56 | 700 Series | Spring Rewind Reel

Sale price$1,655.43



700 Spring Rewind Reels To handle 1/4" through 1/2" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,556.10
8–14 $1,489.89
15+ $1,324.34
Discounts applied in cart/checkout.
Applications:
  • Lubrication
  • Air/Water
  • Assembly Operations
  • Washdown
  • Air Tools
  • General Industrial Applications
Features:
  • Rollformed channel frame for heavy-duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90 deg. balanced pressure swivel joint 1/2" female NPT threads.
  • Standard outlet 1/2" female NPT threads.
  • Standard Pressures to 3000 psi (207 bar) (available up to 10,000 psi 690 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/8" 1/2"
O.D. (in) 5/8" 3/4" A B C D E F G H X Y
716-23-24-15.5J 65' length 65' length 79 lbs. 9.25" 4" 15.5" 23.25" 24.38" 12.75" 23.88" 12.5" 4.5" 20"
716-23-24-15.5G 75' length 65' length 94 lbs. 9.25" 4" 15.5" 23.25" 24.38" 12.75" 23.88" 12.5" 4.5" 20"
716-25-26-15.5B 75' length 75' length 90 lbs. 9.25" 4" 15.5" 25" 26.12" 12.75" 25.88" 13.5" 4.5" 21.75"
718-25-26-15.5G 100' length 100' length 96 lbs. 11.25" 6" 15.5" 25" 26.12" 14.75" 25.88" 13.5" 6.5" 21.75"
718-30-31-20D 150' length 125' length 127 lbs. 11.25" 6" 20" 28.5" 29.62" 15.5" 31.38" 17" 6.5" 25.25"

Product Data:

Series:
  • 700 Series

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
