7/8" HTR5 by Couplamatic | -16 Textile Covered | One Wire High Temperature Hydraulic Hose | SAE 100R5 | SAE J1402 | 7/8" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R5 — High Temperature, Textile Cover

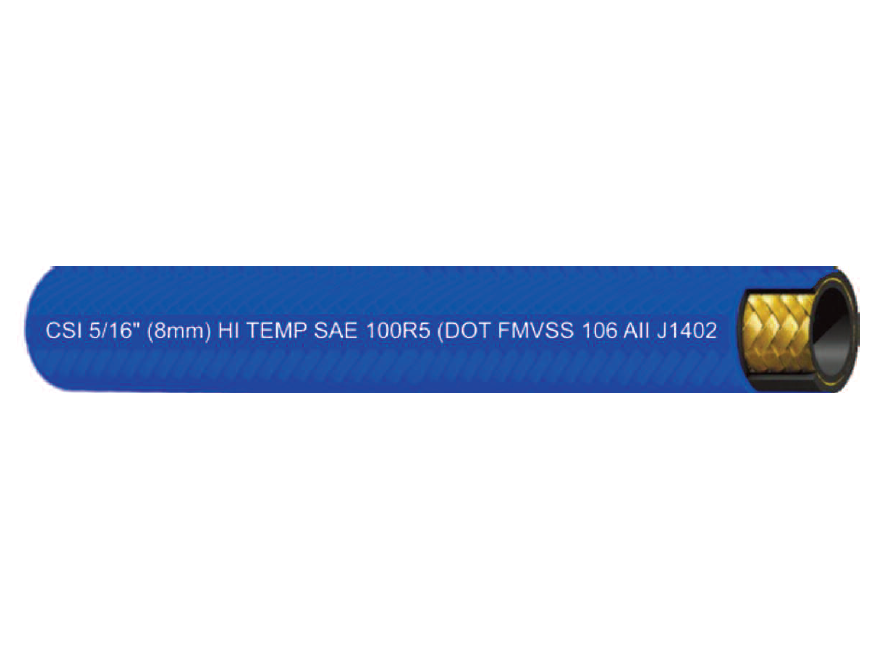

HTR5 Textile Covered High Temperature Hydraulic Hose
One wire braid SAE 100R5 hose under a blue high temperature textile braid cover, rated to +300°F and DOT approved through 5/8" for air brake service.
1
What is this hose used for?
- Medium Pressure High Temp Hydraulics
- Air
- Water.
2
What are the key specifications?
SAE Rating
SAE 100R5, SAE J1402, DOT FMVSS 106 AII (3/16" thru 5/8")
Cover
Blue Textile Braid, High Temperature
Reinforcement
One Wire Braid
Temperature
-40°F to +300°F (-40°C to +150°C)
3
What are the main product features?
- +300°F service temperature — well above standard hydraulic hose ratings.
- SAE J1402 / DOT FMVSS 106 AII — approved for air brake service in 3/16" through 5/8".
- Blue textile braid cover — the traditional 100R5 construction, easy to identify.
- Hydraulics, air and water — a genuinely multi-service hose.
- Wide size range — 3/16" (-4) through 1-13/16" (-32).
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 3/16" HTR5 | 3/16"(-04) | 0.520" | 3,000 lbs. | 12,000 lbs. | 3" | 15 lbs. | 250ft |
| 1/4" HTR5 | 1/4"(-05) | 0.580" | 3,000 lbs. | 12,000 lbs. | 3.4" | 17 lbs. | 250ft |
| 5/16" HTR5 | 5/16"(-06) | 0.680" | 2,250 lbs. | 9,000 lbs. | 4" | 22 lbs. | 250ft |
| 13/32" HTR5 | 13/32"(-08) | 0.770" | 2,000 lbs. | 8,000 lbs. | 4.6" | 30 lbs. | 250ft |
| 1/2" HTR5 | 1/2"(-10) | 0.921" | 1,750 lbs. | 7,000 lbs. | 5.5" | 37 lbs. | 250ft |
| 5/8" HTR5 | 5/8"(-12) | 1.080" | 1,500 lbs. | 6,000 lbs. | 6.5" | 46 lbs. | 250ft |
| 7/8" HTR5 | 7/8"(-16) | 1.240" | 800 lbs. | 3,200 lbs. | 7.4" | 48 lbs. | 250ft |
| 1-1/8" HTR5 | 1-1/8"(-20) | 1.500" | 625 lbs. | 2,500 lbs. | 9" | 52 lbs. | 100ft |
| 1-3/8" HTR5 | 1-3/8"(-24) | 1.750" | 500 lbs. | 2,000 lbs. | 10.5" | 81 lbs. | Bulk |
| 1-13/16" HTR5 | 1-13/16"(-32) | 2.220" | 350 lbs. | 1,400 lbs. | 13.2" | 99 lbs. | Bulk |
Cut lengths are available. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
800
Cover Construction:
Specifications and Approvals:
Compatible Series:
