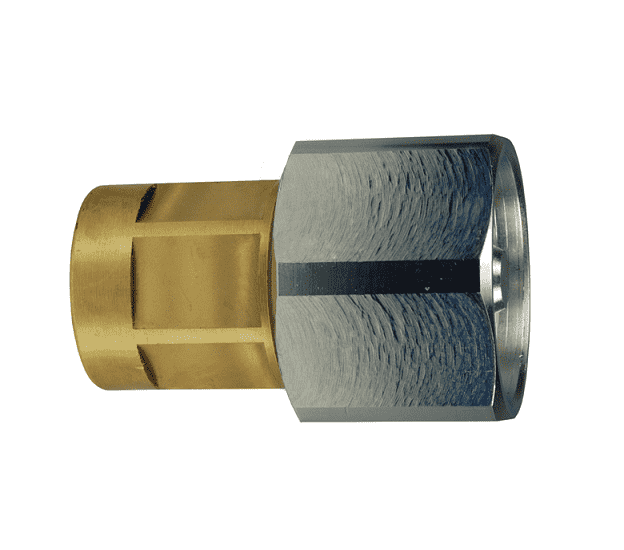

6WBF6-B-HN Dixon Valve Brass W-Series Quick Disconnect 3/4" Wingstyle Interchange Hex-Nut Hydraulic Coupler - 3/4"-14 Female BSPP

6WBF6-B-HN Dixon Valve Brass W-Series Quick Disconnect 3/4" Wingstyle Interchange Hex-Nut Hydraulic Coupler - 3/4"-14 Female BSPP

Sale price$70.73

Dixon Quick Disconnect Couplings - W-Series - W-Series Wingstyle Interchange Hex-Nut Coupler (Female Threads)
Buy More, Save More!
Quantity Price Each
10–39 $66.49
40–79 $60.12
80+ $53.05
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Brass
  • Steel
Seal Material(s):
  • Buna-N/Nitrile Rubber
Features:
  • Full Hex - Ease of Installation
  • Compact Body Profile - Reduction of Side-Load Stress
  • Hybrid Valve Guide - Improved Flow & Pressure Performance
  • Anti-Extrusion Seal-Pack - Superior Impulse Performance
  • Bonded Flange Valve - Improved Impulse Performance
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Nitrile (Buna-N) seals are standard.
  • Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection.
  • Redundant O-Ring on the coupler body will engage nipple for secondary sealing support.
  • Coupling has a PTFE back-up ring on the valve sleeve to extend service life.
Compatibility & Interchange Data:
  • Aeroquip 5100-Series
  • Parker 6100-Series
  • Snap-Tite 78-Series
  • Faster Series-FB
  • Safeway S51-Series
Seal Components:
  • Nitrile (Buna-N) seals are standard, providing a temperature range of -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • Couplings have a TPC-ET back-up ring on the valve sleeve to extend service life.
  • Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection.
  • Nipple valve seal is crimped to improve seal integrity and prolong service life.
  • External O-ring on plug indicates full connection and acts as a contamination shield in connected mode.
  • Redundant O-ring on the coupler body will engage nipple for secondary sealing support.
Other Components:
Notes:
  • Although wingstyle couplings are able to connect and disconnect while under pressure, it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety. If it is not possible to de-energize the circuit, operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk, once hydraulic power is applied during the connection process.
  • W-series couplings are not recommended for continuous hydraulic impulse applications at rated pressures.
  • WARNING: Brass products contain a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Female Threads Material Length Max. OD Hex Flats Inch Max. Operating Pressure Burst Pressure Weight (Lbs.)
6WF4-B-HN 3/4" 1/2"-14 NPTF brass 2.73" 1.92" 1-5/32" 3000 PSI 13000 PSI 1.0500
6WBF4-B-HN 3/4" 1/2"-14 BSPP brass 2.73" 1.92" 1-5/32" 3000 PSI 13000 PSI 1.0500
6WF6-B-HN 3/4" 3/4"-14 NPTF brass 2.73" 1.92" 1-5/32" 3000 PSI 13000 PSI 1.0500
6WBF6-B-HN 3/4" 3/4"-14 BSPP brass 2.73" 1.92" 1-5/32" 3000 PSI 13000 PSI 1.0500
8WF8-B-HN 1" 1"-11-1/2 NPTF brass 3.33" 2.33" 1-15/32" 4000 PSI 16000 PSI 1.7000
8WF8-HN 1" 1"-11-1/2 NPTF steel 3.33" 2.33" 1-15/32" 4000 PSI 16000 PSI 1.7500
8WBF8-B-HN 1" 1"-11 BSPP brass 3.33" 2.33" 1-15/32" 4000 PSI 16000 PSI 1.7000
10WF10-B-HN 1-1/4" 1-1/4"-11-1/2 NPTF brass 3.64" 2.75" 1-25/32" 3000 PSI 12000 PSI 2.7000
10WBF10-B-HN 1-1/4" 1-1/4"-11 BSPP brass 3.64" 2.75" 1-25/32" 3000 PSI 12000 PSI 2.7000
12WF12-B-HN 1-1/2" 1-1/2"-11-1/2 NPTF brass 3.67" 3.01" 2-7/64" 2500 PSI 10000 PSI 3.1500
12WBF12-B-HN 1-1/2" 1-1/2"-11 BSPP brass 3.67" 3.01" 2-7/64" 2500 PSI 10000 PSI 3.1500
