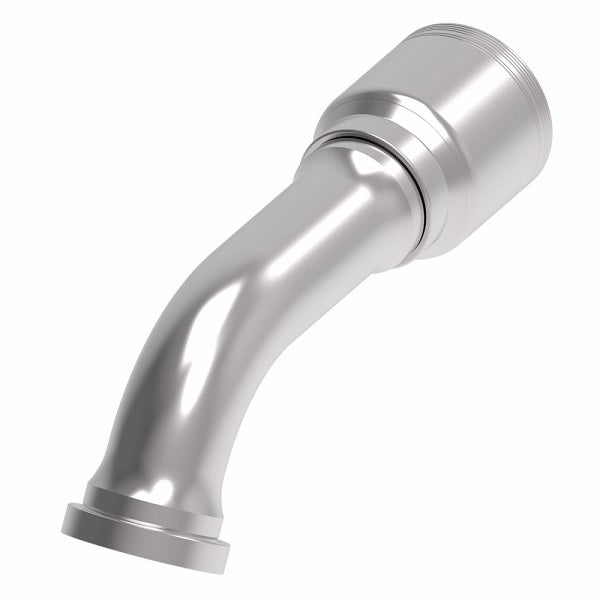

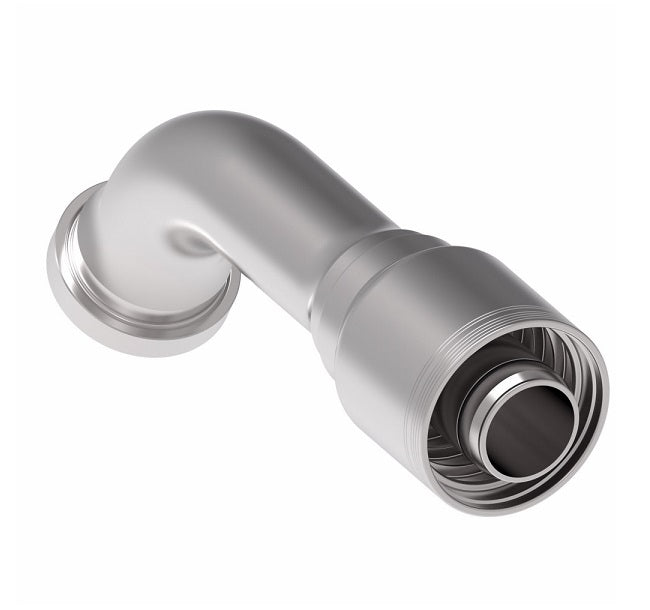

6S32CTG32 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTG) - 60° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $363.08 |
| 15–29 | $328.32 |
| 30+ | $289.70 |
Discounts applied in cart/checkout.
Product Data:
Shape:
60 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16CTG16 | -16 | 25 | -16 | 1.87" | 6.25" | 4.69" | 0.76" | 1.92" |
| 6S20CTG16 | -20 | 25 | -16 | 2.13" | 7.29" | 5.73" | 0.76" | 2.33" |
| 6S20CTG20 | -20 | 31 | -20 | 2.13" | 7.98" | 5.77" | 0.99" | 2.33" |
| 6S24CTG20 | -24 | 31 | -20 | 2.50" | 8.83" | 6.63" | 0.99" | 2.62" |
| 6S24CTG24 | -24 | 38 | -24 | 2.50" | 10.01" | 6.94" | 1.22" | 2.62" |
| 6S32CTG24 | -32 | 38 | -24 | 3.13" | 12.09" | 9.02" | 1.22" | 3.44" |
| 6S32CTG32 | -32 | 51 | -32 | 3.13" | 12.20" | 9.13" | 1.66" | 3.44" |
