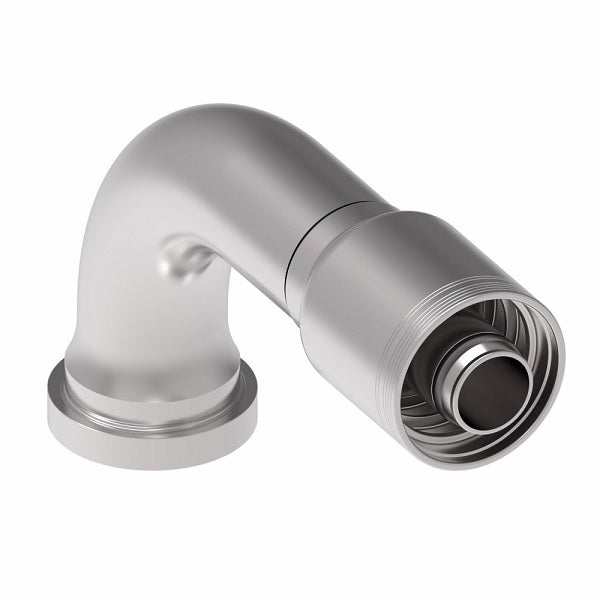

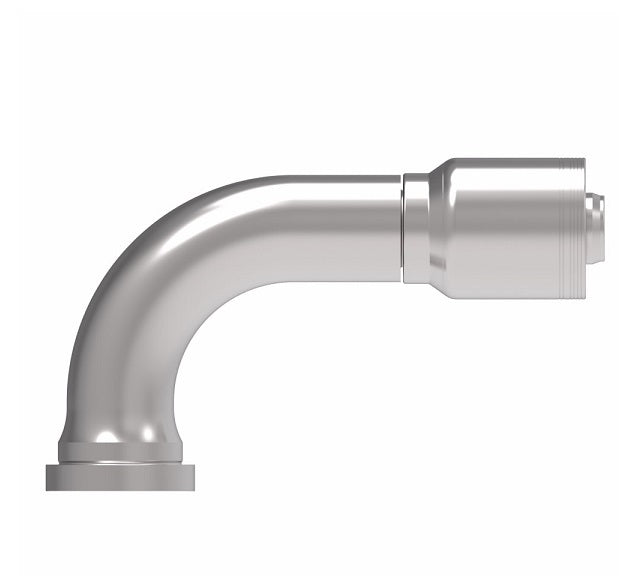

6S32CTB24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 90° Elbow (CTB) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel
Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTB) - 90° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $373.64 |
| 15–29 | $337.87 |
| 30+ | $298.12 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16CTB16 | -16 | 25 | -16 | 1.87" | 4.96" | 3.39" | 0.76" | 2.98" |
| 6S20CTB16 | -20 | 25 | -16 | 2.13" | 5.72" | 4.15" | 0.76" | 3.66" |
| 6S20CTB20 | -20 | 31 | -20 | 2.13" | 6.40" | 4.19" | 0.99" | 3.66" |
| 6S24CTB20 | -24 | 31 | -20 | 2.50" | 7.05" | 4.84" | 0.99" | 4.16" |
| 6S24CTB24 | -24 | 38 | -24 | 2.50" | 8.22" | 5.15" | 1.22" | 4.16" |
| 6S32CTB24 | -32 | 38 | -24 | 3.13" | 9.74" | 6.67" | 1.22" | 5.50" |
| 6S32CTB32 | -32 | 51 | -32 | 3.13" | 9.85" | 6.78" | 1.66" | 5.50" |
