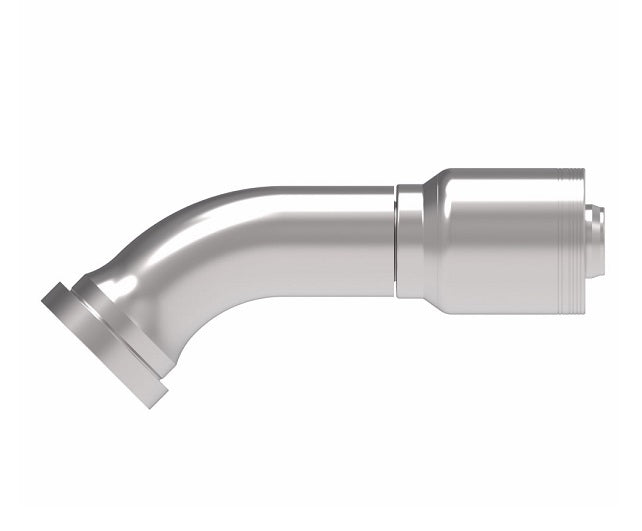

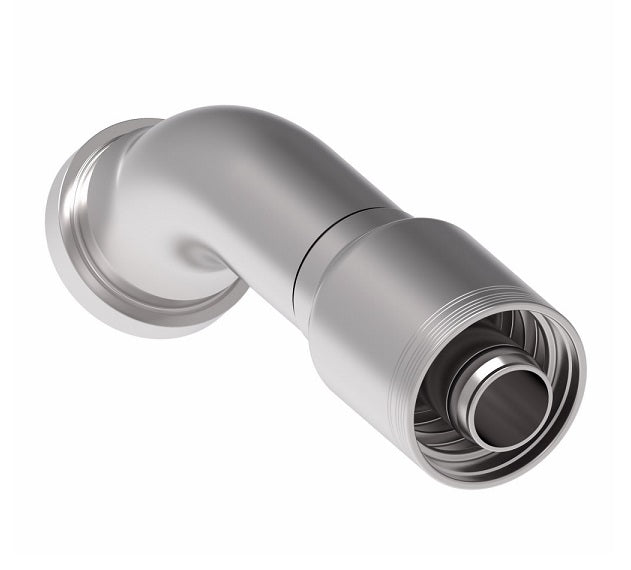

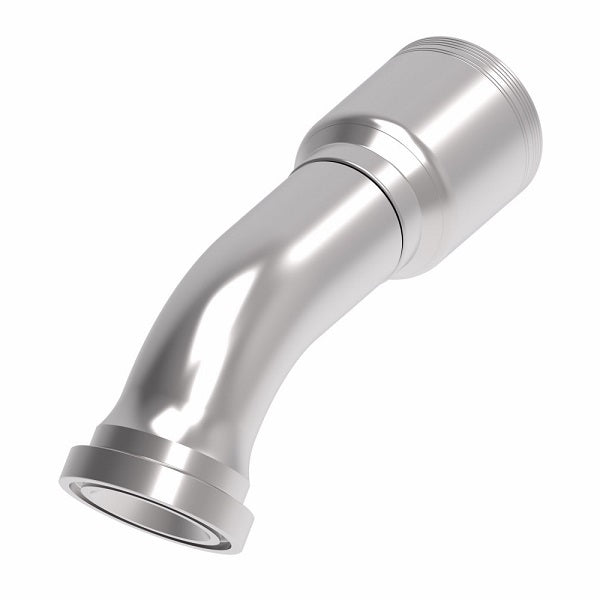

6S32CTA24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 45° Elbow (CTA) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel
Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTA) - 45° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $357.78 |
| 15–29 | $323.53 |
| 30+ | $285.47 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16CTA16 | -16 | 25 | -16 | 1.87" | 5.29" | 3.72" | 0.76" | 1.39" |
| 6S20CTA16 | -20 | 25 | -16 | 2.13" | 6.02" | 4.46" | 0.76" | 1.65" |
| 6S20CTA20 | -20 | 31 | -20 | 2.13" | 6.70" | 4.50" | 0.99" | 1.65" |
| 6S24CTA16 | -24 | 31 | -20 | 2.50" | 7.30" | 5.08" | 0.99" | 1.65" |
| 6S24CTA24 | -24 | 38 | -24 | 2.50" | 8.47" | 5.40" | 1.22" | 1.82" |
| 6S32CTA24 | -32 | 38 | -24 | 3.13" | 9.93" | 6.86" | 1.22" | 2.31" |
| 6S32CTA32 | -32 | 51 | -32 | 3.13" | 10.04" | 6.97" | 1.66" | 2.31" |
