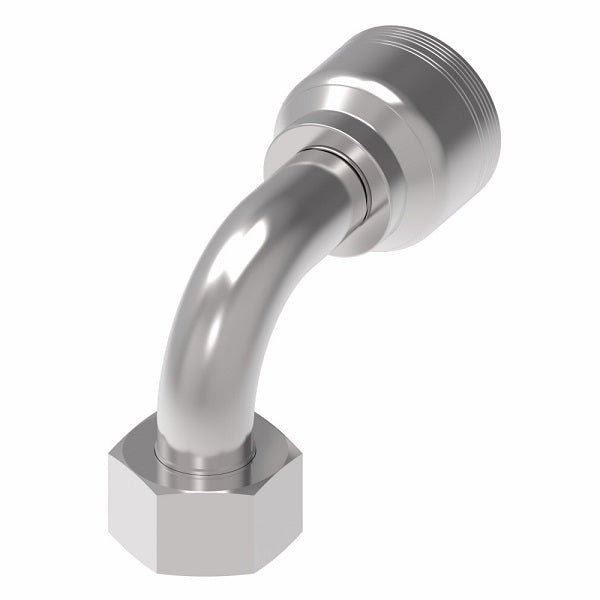

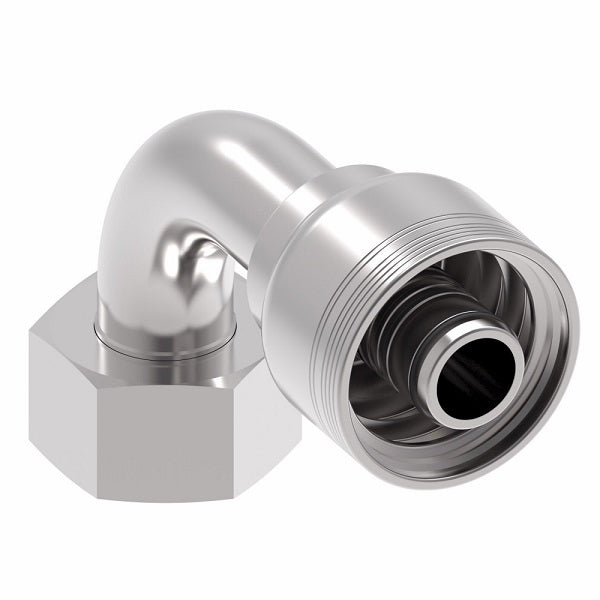

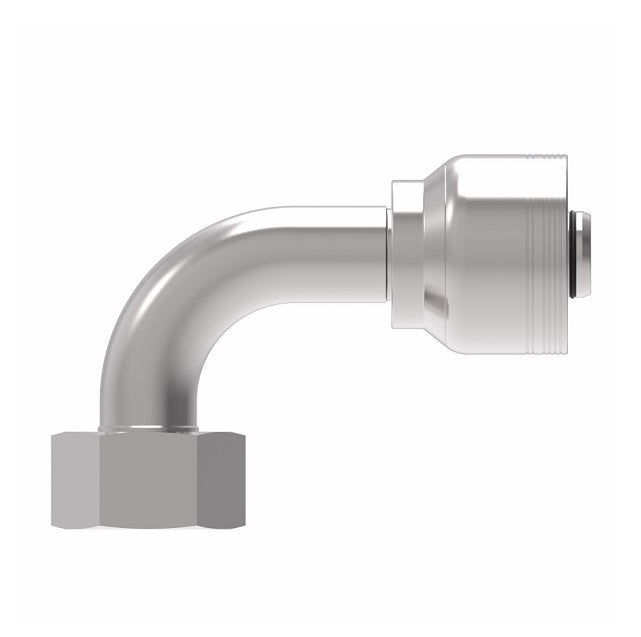

6S25DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
6S25DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
6S25DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

6S25DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

Sale price$192.94

Aeroquip® by Danfoss
6 Wire 6S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSB) - 90° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–29 $181.36
30–59 $164.00
60+ $144.71
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • S30 Female DIN
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash H Hex 1
DN Dash Size
6S25DSB16 30 25 -16 M42X2 4.90" 3.34" 0.76" 2.99" 50mm
6S32DSB16 38 25 -16 M52X2 5.38" 3.82" 0.76" 3.50" 60mm
6S32DSB20 38 31 -20 M52X2 6.07" 3.86" 0.99" 3.50" 60mm
