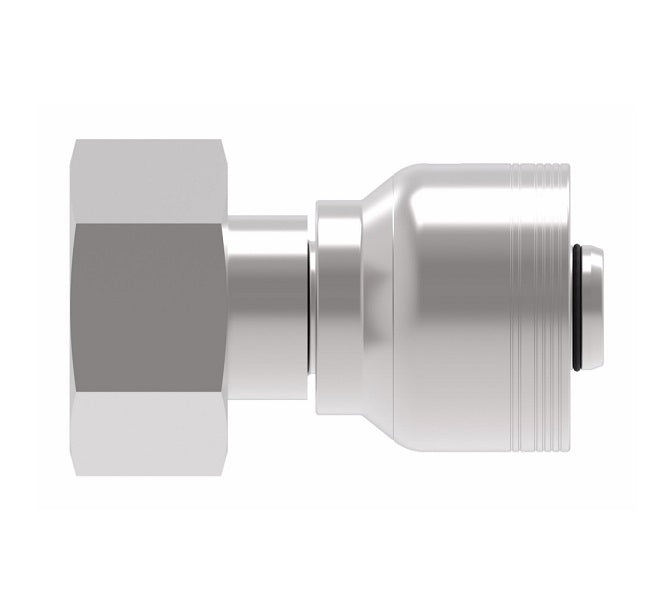

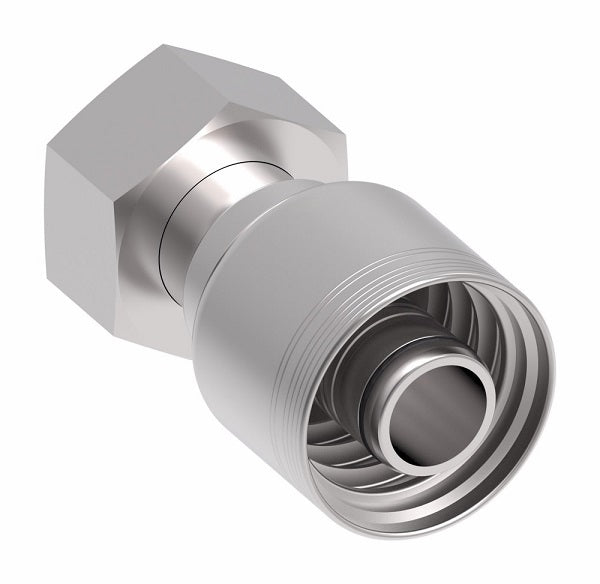

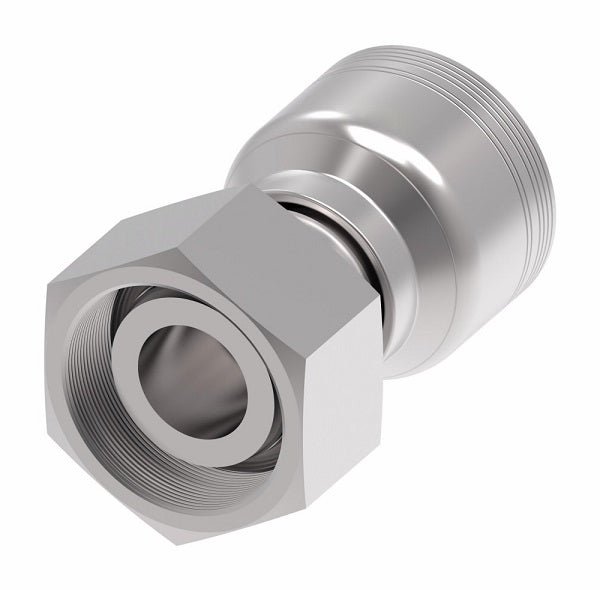

6S25DS16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
6S25DS16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
6S25DS16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

6S25DS16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

Sale price$138.86
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash Hex 1
DN Dash Size
6S25DS16 30 25 -16 M42X2 3.59" 2.02" 0.76" 50mm
6S32DS16 38 25 -16 M52X2 3.74" 2.18" 0.76" 60mm
6S32DS20 38 31 -20 M52X2 4.43" 2.22" 0.99" 60mm

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • S30 Female DIN
  • 1in Hose Barb
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
