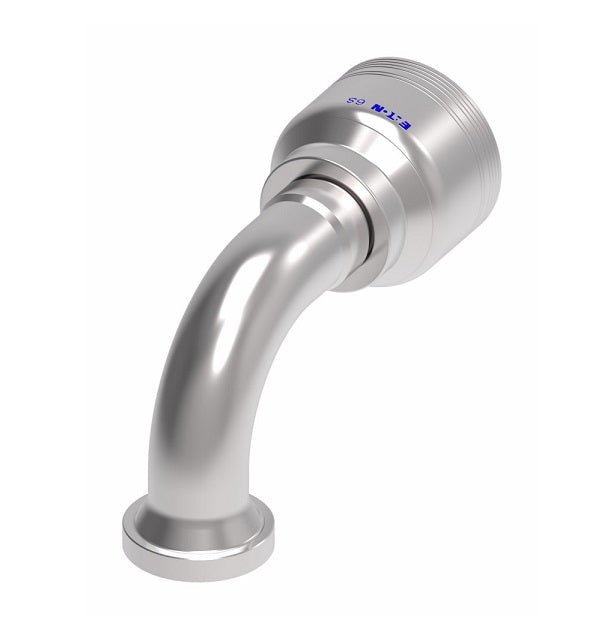

6S20FLB16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Flange x -16 Hose Barb | Steel
Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FLB) - 90° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $121.97 |
| 20–59 | $110.30 |
| 60+ | $97.32 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16FLB16 | -16 | 25 | -16 | 1.75" | 4.96" | 3.39" | 0.76" | 2.80" |
| 6S20FLB16 | -20 | 25 | -16 | 2.00" | 5.72" | 4.15" | 0.76" | 3.50" |
| 6S20FLB20 | -20 | 31 | -20 | 2.00" | 6.40" | 4.19" | 0.99" | 3.50" |
| 6S24FLB24 | -24 | 38 | -24 | 2.37" | 8.22" | 5.15" | 1.22" | 4.09" |
| 6S32FLB24 | -32 | 38 | -24 | 2.81" | 9.74" | 6.67" | 1.22" | 5.43" |
| 6S32FLB32 | -32 | 51 | -32 | 2.81" | 9.85" | 6.78" | 1.66" | 5.43" |
