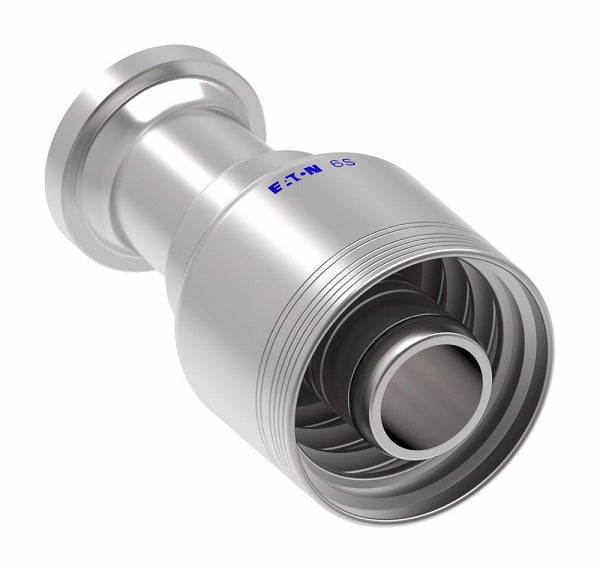

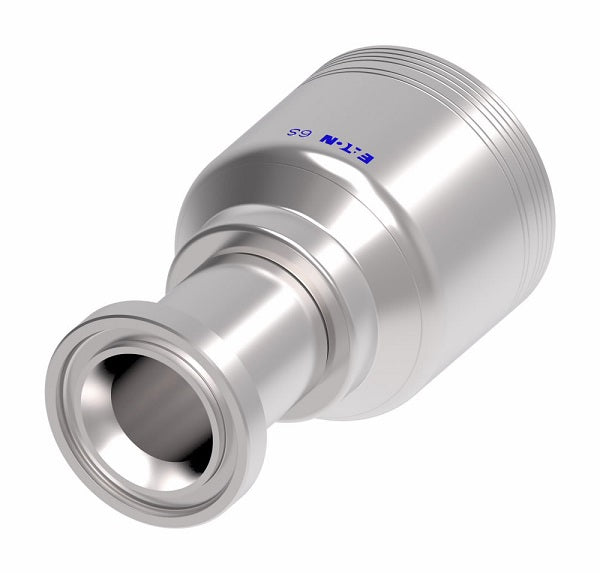

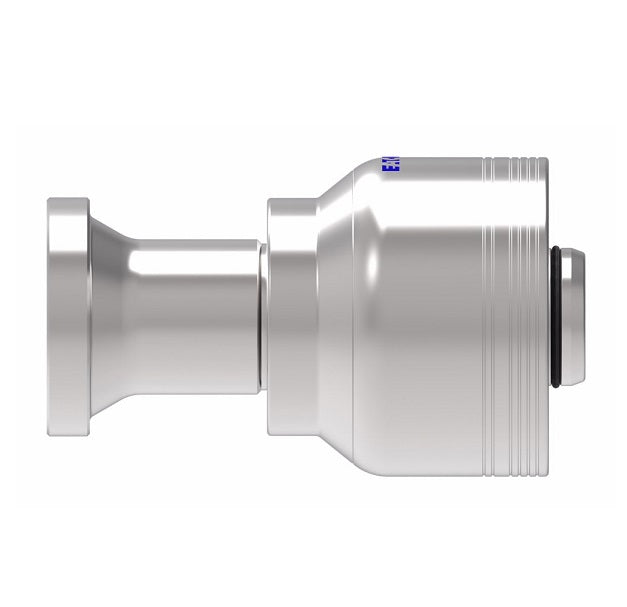

6S20FL20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel
6S20FL20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel
6S20FL20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel

6S20FL20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel

Sale price$93.94

Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FL) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $88.30
20–59 $79.85
60+ $70.46
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Code 61 Flange
  • 1-1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
6S16FL16 -16 25 -16 1.75" 3.67" 2.11" 0.76"
6S20FL20 -20 31 -20 2.00" 4.65" 2.45" 0.99"
6S24FL24 -24 38 -24 2.38" 6.75" 3.68" 1.22"
6S32FL24 -32 38 -24 2.81" 6.88" 3.81" 1.22"
6S32FL32 -32 51 -32 2.81" 6.99" 3.92" 1.66"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
