6R5-6FS90 by Couplamatic | R5 Reusable Coupling | 5/16" Hose ID x 5/8-18 Thread Size SAE 45° Female Swivel | 90° Elbow | Trivalent Zinc Plating

6R5-6FS90 by Couplamatic | R5 Reusable Coupling | 5/16" Hose ID x 5/8-18 Thread Size SAE 45° Female Swivel | 90° Elbow | Trivalent Zinc Plating

Sale price$23.80

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - SAE 45° - 90° Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $22.37
40–79 $20.23
80+ $17.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • Reusable Fitting Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 5/16in Reusable Hose End
Features:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Assembly Instructions:
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.

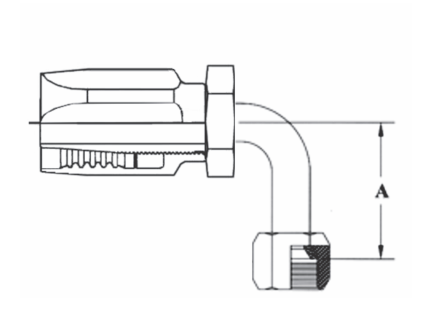

    Part Number Hose ID Hose Dash Size Thread Size Tube OD A-DropInches Hose Type
    6R5-6FS90 5/16" -06 5/8-18 3/8" 0.84" 100R5

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
