6GCAP-32x32 by Couplamatic | Grip Crimp 6GC Series Coupling | 2" Hose ID x 2-11-1/2 Thread Size NPTF | API Thread Size Male Solid | Straight | Trivalent Zinc Plating

6GCAP-32x32 by Couplamatic | Grip Crimp 6GC Series Coupling | 2" Hose ID x 2-11-1/2 Thread Size NPTF | API Thread Size Male Solid | Straight | Trivalent Zinc Plating

Sale price$117.29
Buy more, save moreDiscounts applied in cart/checkout.
6GC Series — 4SH / R13 / R15 No-Skive

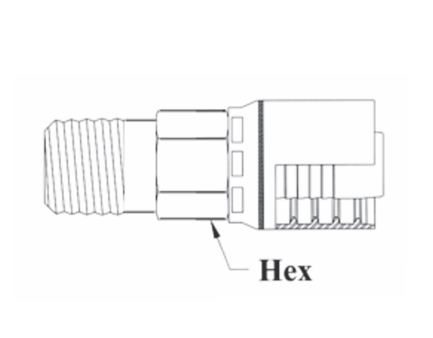

6GCAP Grip Crimp 6GC Series Coupling — NPTF, Male Solid, Straight

6GCAP is the NPTF, Male Solid, Straight configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.

1

What are the main product features?
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates six spiral hose without stripping the cover.
  • Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size
6GCAP-16x16 1" 1" 1-11-1/2 1-3/8"
6GCAP-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2"
6GCAP-32x32 2" 2" 2-11-1/2 2-1/2"

Additional Product Data:

Series:
  • 6GC Series
Shape:

Straight

Ends Configuration:
  • 2-1/2in Male NPTF
  • 2in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
