6GC80-12x16 by Couplamatic | Grip Crimp 6GC Series Coupling | Extra Heavy Duty Flange | 3/4" Hose ID x 1" Flange Size | for use on Caterpillar® Equipment | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
6GC Series — 4SH / R13 / R15 No-Skive
6GC80 Grip Crimp 6GC Series Coupling — Straight, for Caterpillar Equipment
6GC80 is the Straight, for Caterpillar Equipment configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.
1
What are the main product features?
- The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates six spiral hose without stripping the cover.
- Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2
Which sizes are available?

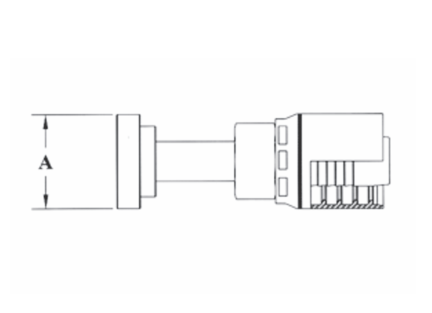

| Part Number | Hose ID | Flange Size | A-DiaInches | Cross Reference Part Numbers | |
|---|---|---|---|---|---|
| Parker 78 | Parker 79 | ||||
| 6GC80-12x12 | 3/4" | 3/4" | 1.62" | 1XA78-12-12 | 1XA79-12-12 |
| 6GC80-12x16 | 3/4" | 1" | 1.88" | — | — |
| 6GC80-16x16 | 1" | 1" | 1.88" | 1XA78-16-16 | 1XA79-16-16 |
| 6GC80-16x20 | 1" | 1-1/4" | 2.12" | — | — |
| 6GC80-20x20 | 1-1/4" | 1-1/4" | 2.12" | 1XA78-20-20 | 1XA79-20-20 |
| 6GC80-24x24 | 1-1/2" | 1-1/2" | 2.50" | 1XA78-24-24 | 1XA79-24-24 |
| 6GC80-32x32 | 2" | 2" | 3.12" | 1XAS6-32-32 | — |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
