6GC61 Grip Crimp 6GC Series Coupling — Code 62 Split Flange, 45° Elbow
6GC61 is the Code 62 Split Flange, 45° Elbow configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.
1
What are the main product features?
- The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates six spiral hose without stripping the cover.
- Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2
Which sizes are available?

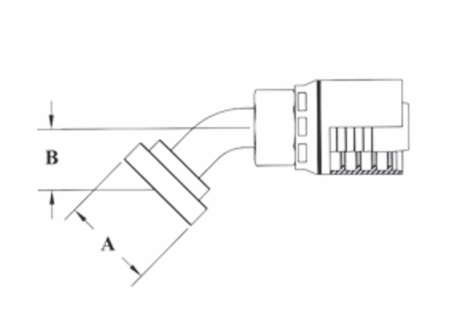

| Part Number | Hose ID | Flange Size | A-DiaInches | B-DropInches | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Parker 78 | Parker 79 | |||||
| 6GC61-12x12 | 3/4" | 3/4" | 1.62" | 1.25" | 16F78-12-12 | 16F79-12-12 |
| 6GC61-12x16 | 3/4" | 1" | 1.88 | 1.38" | 16F78-16-12 | — |
| 6GC61-16x16 | 1" | 1" | 1.88" | 1.38" | 16F78-16-16 | 16F79-16-16 |
| 6GC61-16x20 | 1" | 1-1/4" | 2.12" | 1.38" | 16F78-20-16 | 16F79-20-16 |
| 6GC61-20x20 | 1-1/4" | 1-1/4" | 2.12" | 1.50" | 16F78-20-20 | 16F79-20-20 |
| 6GC61-24x24 | 1-1/2" | 1-1/2" | 2.50" | 1.70" | 16F78-24-24 | 16F79-24-24 |
| 6GC61-32x32 | 2" | 2" | 3.12" | 2.25" | 16FS6-32-32 | — |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
