6GC38-16x30 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x M42x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

6GC38-16x30 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x M42x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Sale price$52.88
Buy more, save moreDiscounts applied in cart/checkout.
6GC Series — 4SH / R13 / R15 No-Skive

6GC38 Grip Crimp 6GC Series Coupling — DIN Heavy 24° Seat, Female Swivel, Straight

6GC38 is the DIN Heavy 24° Seat, Female Swivel, Straight configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.

1

What are the main product features?
  • Includes O-Ring
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates six spiral hose without stripping the cover.
  • Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2

Which sizes are available?

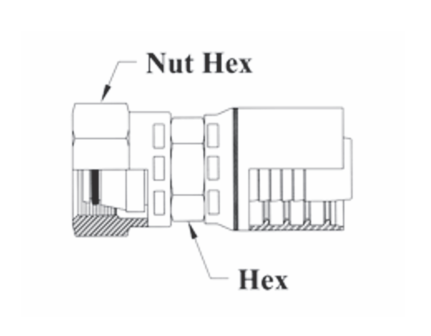

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex
6GC38-10x20 5/8" 20mm M30x2.0 1-1/8" 1-1/2"
6GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8"
6GC38-16x30 1" 30mm M42x2.0 1-11-16" 2"

Additional Product Data:

Series:
  • 6GC Series
Shape:

Straight

Ends Configuration:
  • S30 Female DIN
  • 1in Hose Barb
