6GC38-12x25 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x M36x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

6GC38-12x25 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x M36x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Sale price$38.66
Buy more, save moreDiscounts applied in cart/checkout.
6GC Series — 4SH / R13 / R15 No-Skive

6GC38 Grip Crimp 6GC Series Coupling — DIN Heavy 24° Seat, Female Swivel, Straight

6GC38 is the DIN Heavy 24° Seat, Female Swivel, Straight configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.

1

What are the main product features?
  • Includes O-Ring
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates six spiral hose without stripping the cover.
  • Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2

Which sizes are available?

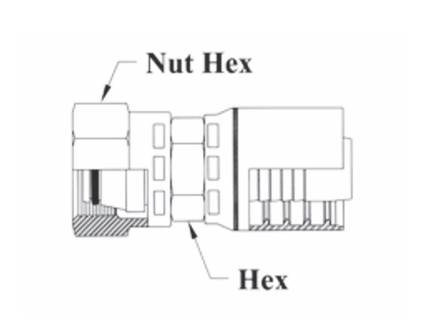

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex
6GC38-10x20 5/8" 20mm M30x2.0 1-1/8" 1-1/2"
6GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8"
6GC38-16x30 1" 30mm M42x2.0 1-11-16" 2"

Additional Product Data:

Series:
  • 6GC Series
Shape:

Straight

Ends Configuration:
  • S25 Female DIN
  • 3/4in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
