6GC32-10x10 by Couplamatic | Grip Crimp 6GC Series Coupling | 5/8" Hose ID x 1x14 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $48.38 |
| 40–79 | $43.75 |
| 80+ | $38.60 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

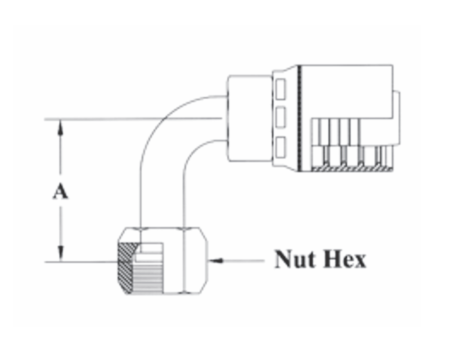

| Part Number | Hose ID | Tube Size | Thread Size | A-DropInches | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Parker 78 | Parker 79 | ||||||
| 6GC32-10x10 | 5/8" | 5/8" | 1x14 | 1.50" | 1-1/8" | - | - |
| 6GC32-12x12 | 3/4" | 3/4" | 1-3/16x12 | 2.00" | 1-3/8" | 1J978-12-12 | 1J979-12-12 |
| 6GC31-12x16 | 3/4" | 1" | 1-7/16x12 | 2.50" | 1-5/8" | - | - |
| 6GC31-16x16 | 1" | 1" | 1-7/16x12 | 2.50" | 1-5/8" | 1J978-16-16 | 1J979-16-16 |
| 6GC32-20x20 | 1-1/4" | 1-1/4" | 1-11/16x12 | 2.80" | 1-7/8" | 1J978-20-20 | 1J979-20-20 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
| Bite to the Wire Hose Ends for: | |
|---|---|
| 100R13 Spiral Hose (RC13 & DHEXR13) 3/4" thru 2" | 100R15 Spiral Hose (RC15) 3/4" thru 1-1/2" |
| 4SH Spiral Hose 5/8", 3/4", and 1" | |
| Description: | |||
|---|---|---|---|
|
|
| Part Number | Hose ID | Tube Size | Thread Size | A-DropInches | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Parker 78 | Parker 79 | ||||||
| 6GC32-10x10 | 5/8" | 5/8" | 1x14 | 1.50" | 1-1/8" | - | - |
| 6GC32-12x12 | 3/4" | 3/4" | 1-3/16x12 | 2.00" | 1-3/8" | 1J978-12-12 | 1J979-12-12 |
| 6GC31-12x16 | 3/4" | 1" | 1-7/16x12 | 2.50" | 1-5/8" | - | - |
| 6GC31-16x16 | 1" | 1" | 1-7/16x12 | 2.50" | 1-5/8" | 1J978-16-16 | 1J979-16-16 |
| 6GC32-20x20 | 1-1/4" | 1-1/4" | 1-11/16x12 | 2.80" | 1-7/8" | 1J978-20-20 | 1J979-20-20 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
