6GC09-10x10 by Couplamatic | Grip Crimp 6GC Series Coupling | 5/8" Hose ID x 7/8x14 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - JIC 37° - Female Swivel
| Quantity | Price Each |
| 20–49 | $20.41 |
| 50–99 | $19.33 |
| 100+ | $17.18 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

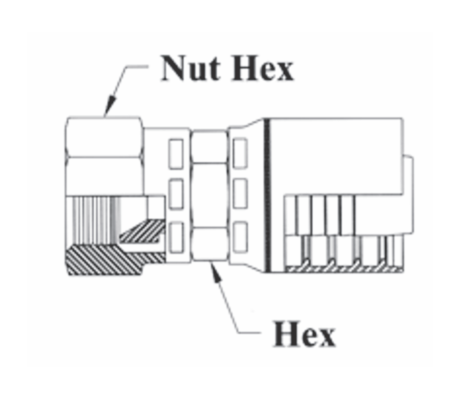

| Part Number | Hose ID | Tube Size | Thread Size | Hex Size | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Parker 78 | ||||||
| 6GC09-10x10 | 5/8" | 5/8" | 7/8x14 | 15/16" | 1" | - |
| 6GC09-12x12 | 3/4" | 3/4" | 1-1/16x12 | 1-1/8" | 1-1/4" | 10678-12-12 |
| 6GC09-12x16 | 3/4" | 1" | 1-5/16x12 | 1-3/8" | 1-1/2" | 10678-16-12 |
| 6GC09-16x16 | 1" | 1" | 1-5/16x12 | 1-3/8" | 1-1/2" | 10678-16-16 |
| 6GC09-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 1-11/16" | 2" | 10678-20-20 |
| 6GC09-24x24 | 1-1/2" | 1-1/2" | 1-7/8x12 | 2" | 2-1/4" | 10678-24-24 |
| 6GC09-32x32 | 2" | 2" | 2-1/2x12 | 2-1/2" | 2-7/8" | 106S6-32-32 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
