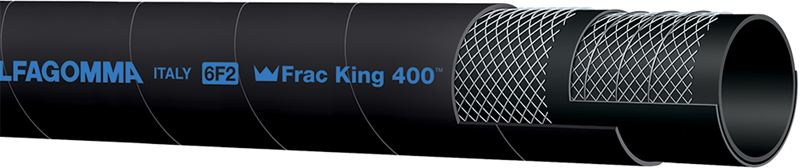

6F2AA400X100 Alfagomma by Kuriyama | FRAC KING™ 400 | 6F2AA Series | High Performance Frac Fluid Hose | 4" ID | 4.96" OD | 400 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | FRAC KING™ 400 | 6F2AA Series | High Performance Frac Fluid Hose
A durable and versatile hose for a variety of oil and gas field applications involving hydraulic frac fluids, abrasive slurries, wastewater, lubricants, water / sand and other high pressure solutions; as well as simulation fluids used in the well drilling process.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,192.82 |
| 4–9 | $3,056.96 |
| 10+ | $2,717.30 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
400
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Applications: | Hydraulic frac fluids, abrasive slurries, wastewater, lubricants, water / sand and other high pressure solutions; as well as simulation fluids used in the well drilling process. | ||
|---|---|---|---|
| Other Ratings: | Oil Resistance: ARPM Class A | Tube: | Conductive nitrile (NBR) meeting ARPM Class A (high oil resistance) rating. |
| Reinforcement: | Helical wire surrounded by textile cords. | Cover: | Highly abrasive-resistant SBR compound for abrasion and ozone resistance. |
| Service Temperature Range: | -40°F (-40°C) to +180°F (+82°C) | Coupling Suggestions: | Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility. |
| Branding: | ALFAGOMMA - ITALY 6F2 Frac King 400 27 bar (400 psi) FRAC S&D (in blue letters) | ||
| Other Features: | |||
|
|||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure* |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | (lbs/ft) | |
| 6F2AA400X100 | 4" | 102mm | 4.96" | 126mm | 400 PSI | 30 in Hg | 20" | 4.07 lbs/pc |
* 4-to-1 safety factor.
