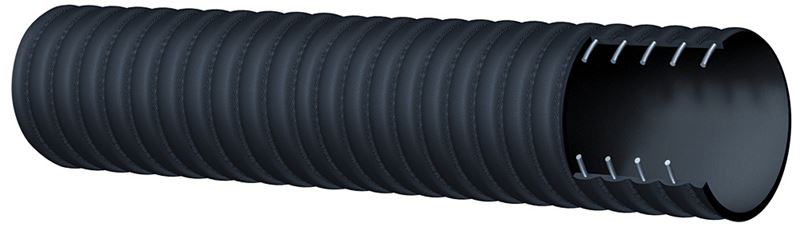

6C5AA300X100 Alfagomma by Kuriyama | 6C5AA Series | Corrugated Tank Truck Hose | 3" ID | 3.44" OD | 150 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | 6C5AA Series | Corrugated Tank Truck Hose
For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,082.22 |
| 8–14 | $1,993.62 |
| 15+ | $1,772.10 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Black corrugated CR - abrasion, ozone, and hydrocarbon resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting couplings or combination nipples attached with bands. |
| Branding: | ALFAGOMMA - ITALY T6C5 10 BAR (150 PSI) PETROLEUM TANK TRUCK (in red letters) | ||
| Part Number 100ft |
Part Number 20ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| 6C5AA200X100 | - | 2" | 51mm | 2.48" | 63mm | 150 PSI | 30 in Hg | 4" | 0.85 lbs/ft |
| 6C5AA300X100 | - | 3" | 76mm | 3.44" | 90mm | 150 PSI | 27 in Hg | 6" | 1.57 lbs/ft |
| 6C5AA400X100 | - | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27 in Hg | 8" | 2.21 lbs/ft |
| - | 6C5AA600X20 | 6" | 152mm | 6.54" | 166mm | 150 PSI | 27 in Hg | 12" | 3.59 lbs/ft |
