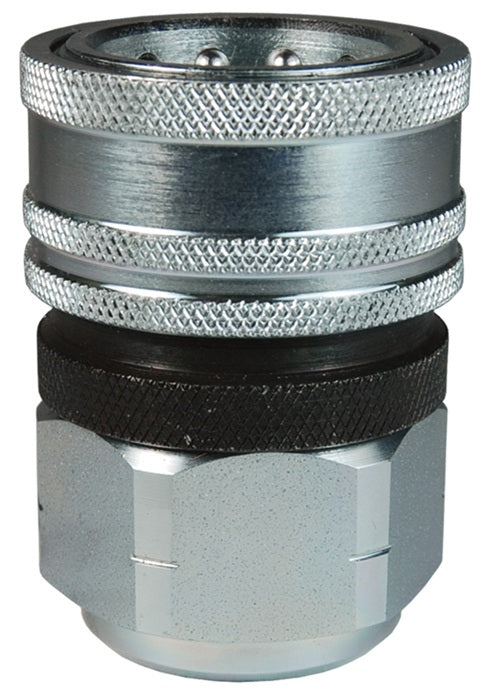

6TRF6 by Dixon Valve | Hydraulic Quick Disconnect Coupling | TR-Series | 3/4" Female NPTF x 3/4" European Interchange | Socket | Nitrile Seal | Steel
6TRF6 by Dixon Valve | Hydraulic Quick Disconnect Coupling | TR-Series | 3/4" Female NPTF x 3/4" European Interchange | Socket | Nitrile Seal | Steel

6TRF6 by Dixon Valve | Hydraulic Quick Disconnect Coupling | TR-Series | 3/4" Female NPTF x 3/4" European Interchange | Socket | Nitrile Seal | Steel

Sale price$81.08

Dixon Valve & Coupling
Hydraulic Coupling: TR-Series European Interchange Coupler (Female Threads)
Buy More, Save More!
Quantity Price Each
5–19 $76.22
20–59 $68.92
60+ $60.81
Discounts applied in cart/checkout.

Product Data:

Series:
  • TR-Series
Shape:

Straight

Ends Configuration:
  • 3/4in Female TEMA European QD Interchange
  • 3/4in Female NPTF
Compatibility & Interchange:
  • TEMA European Interchange
  • TEMA 3800, 5000, 7500, 10000 Series
  • CEJN Series 525
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Steel plugs are hardened to provide heavy-duty performance.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).

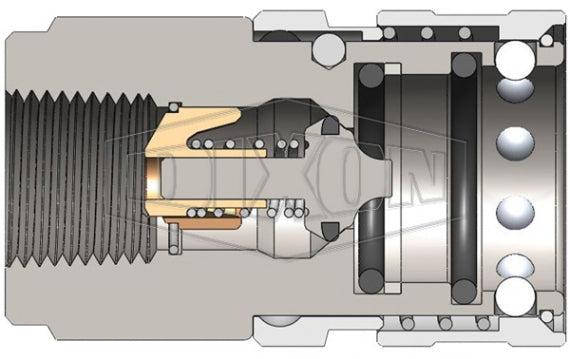

  • Couplers have a redundant O-ring sealing system (dual O-rings with inner PTFE back-up ring).
  • Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Additional Information:
Rated Pressure Chart | TR-Series European Interchange (Connected)
Steel Coupler/Plug
Body
Size		 Maximum Working Burst
3/8" 5,000 PSI 345 bar 20,000 PSI 1,400 bar
1/2" 4,000 PSI 275 bar 16,500 PSI 1,100 bar
3/4" 4,000 PSI 275 bar 15,400 PSI 1,000 bar
1" 3,200 PSI 220 bar 12,800 PSI 900 bar
TR-Series | European Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
3TRF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.52"
(64.0mm)		 1.38"
(35.0mm)		 30mm
3TRBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.52"
(64.0mm)		 1.38"
(35.0mm)		 30mm
4TRF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.62"
(66.5mm)		 1.57"
(40.0mm)		 36mm
4TRBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 2.62"
(66.5mm)		 1.57"
(40.0mm)		 36mm
6TRF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.35"
(85.0mm)		 2.05"
(52.0mm)		 41mm
6TRBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 3.35"
(85.0mm)		 2.05"
(52.0mm)		 41mm
8TRF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.90"
(99.0mm)		 2.56"
(65.0mm)		 55mm
8TRBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 3.90"
(99.0mm)		 2.56"
(65.0mm)		 55mm
TR-Series | European Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
TR3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.59"
(40.5mm)		 1.00"
(25.4mm)		 22mm
TR3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 1.59"
(40.5mm)		 1.00"
(25.4mm)		 22mm
TR4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 1.63"
(41.5mm)		 1.23"
(31.1mm)		 27mm
TR4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 1.63"
(41.5mm)		 1.23"
(31.1mm)		 27mm
TR4F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.20"
(56.0mm)		 1.63"
(41.5mm)		 36mm
TR6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 2.20"
(56.0mm)		 1.63"
(41.5mm)		 36mm
TR8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 2.48"
(63.0mm)		 2.09"
(53.0mm)		 46mm
TR8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 2.48"
(63.0mm)		 2.09"
(53.0mm)		 46mm
