6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

Sale price$296.02

Aeroquip® by Danfoss

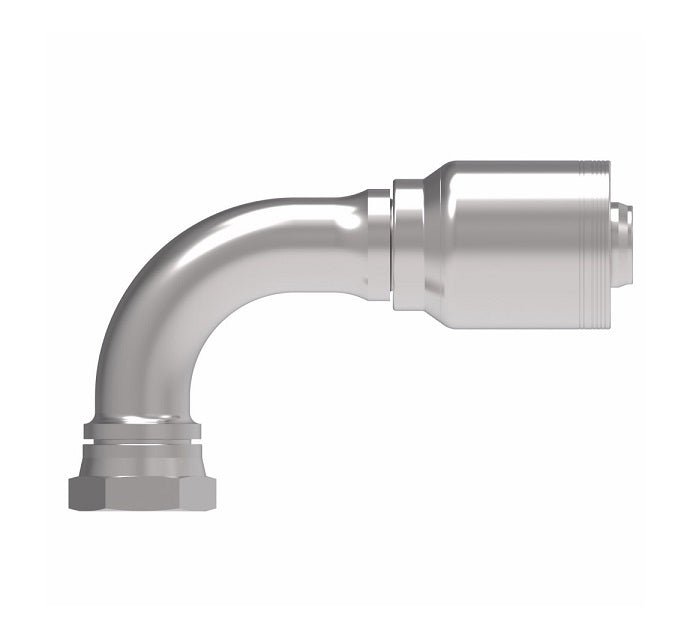

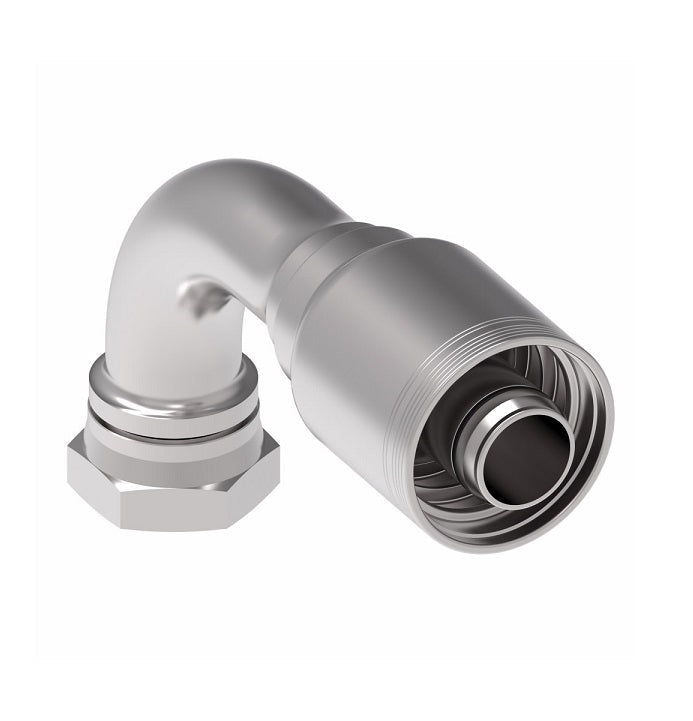

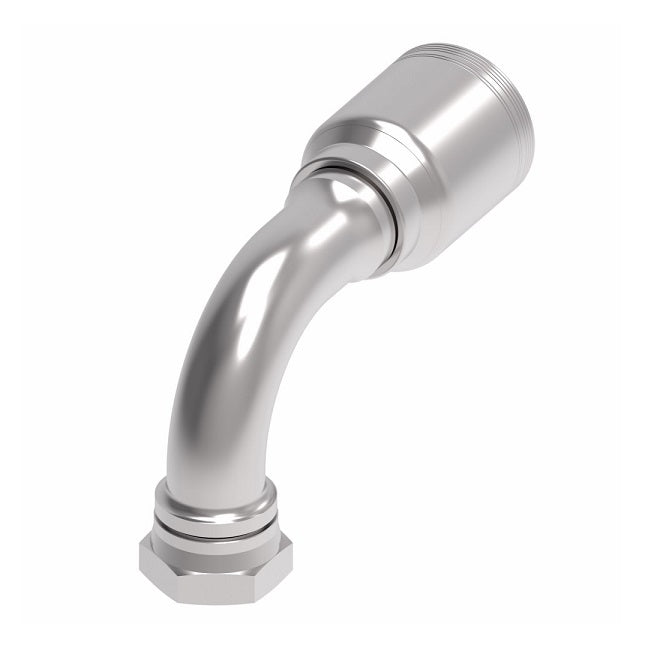

6 Wire 6S Female ORS Swivel Crimp Fitting (FRB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–29 $278.26
30–59 $251.62
60+ $222.02
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Female O-Ring Face Seal
  • 1-1/2in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
6SA16FRB16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 2.80" 1-5/8"
6SA20FRB16 -20 25 -16 1-11/16-12 5.37" 3.81" 0.76" 3.07" 1-7/8"
6SA20FRB20 -20 31 -20 1-11/16-12 6.06" 3.85" 0.99" 3.07" 1-7/8"
6SA24FRB24 -24 38 -24 2-12 8.22" 5.15" 1.22" 4.09" 2-1/4"
