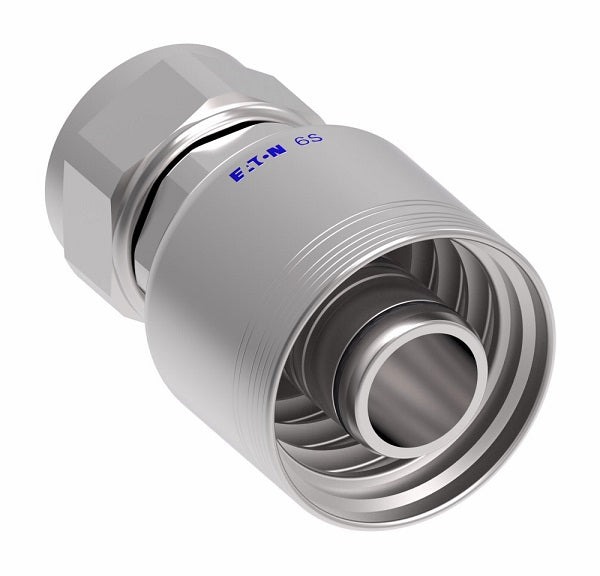

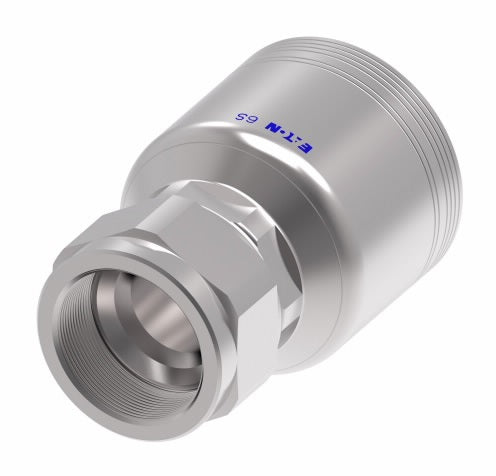

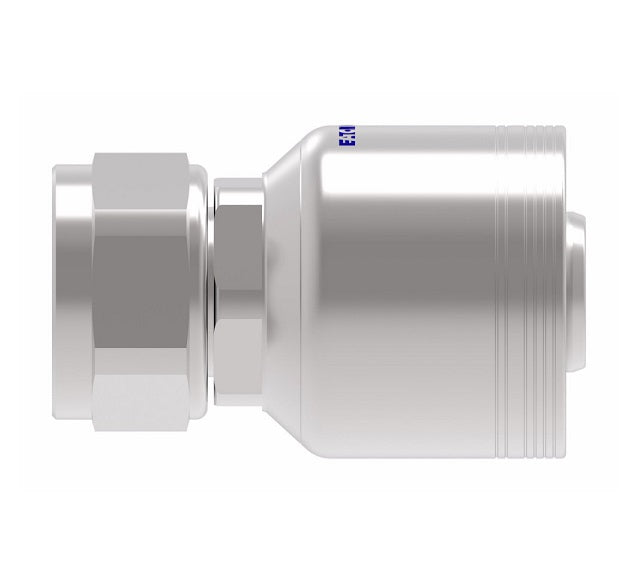

6SA20FJ20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel
6SA20FJ20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel
6SA20FJ20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel

6SA20FJ20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel

Sale price$93.74

Aeroquip® by Danfoss
6 Wire 6S Female JIC/37° Swivel Crimp Fitting (FJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $88.12
20–59 $79.68
60+ $70.31
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female JIC
  • 1-1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
6SA16FJ16 -16 25 -16 1-5/16-12 3.51" 1.94" 0.76" 1-5/8" 1-1/2"
6SA20FJ20 -20 31 -20 1-5/8-12 4.03" 1.82" 0.99" 1-13/16" 2"
6SA24FJ20 -24 31 -20 1-7/8-12 4.23" 2.03" 0.99" 1-13/16" 2-1/4"
6SA24FJ24 -24 38 -24 1-7/8-12 5.31" 2.24" 1.22" 2-1/4" 2-1/4"
6SA32FJ32 -32 51 -32 2-1/2-12 5.75" 2.68" 1.66" - 2-7/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
