6SA16FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
6SA16FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
6SA16FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

6SA16FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

Sale price$72.26

Aeroquip® by Danfoss

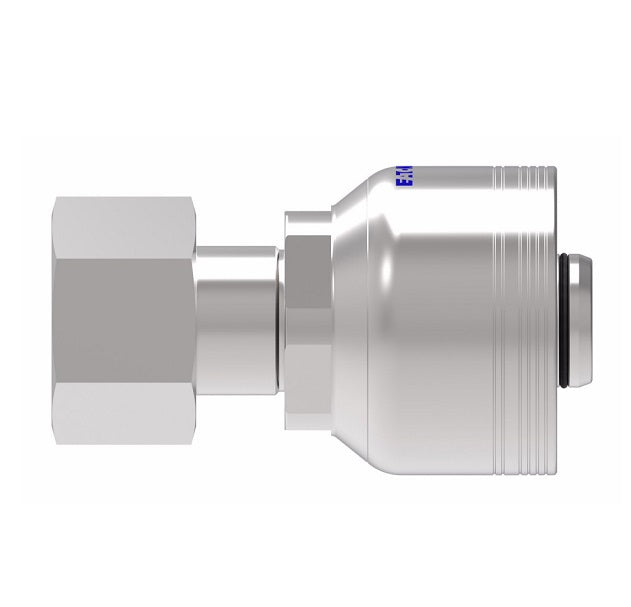

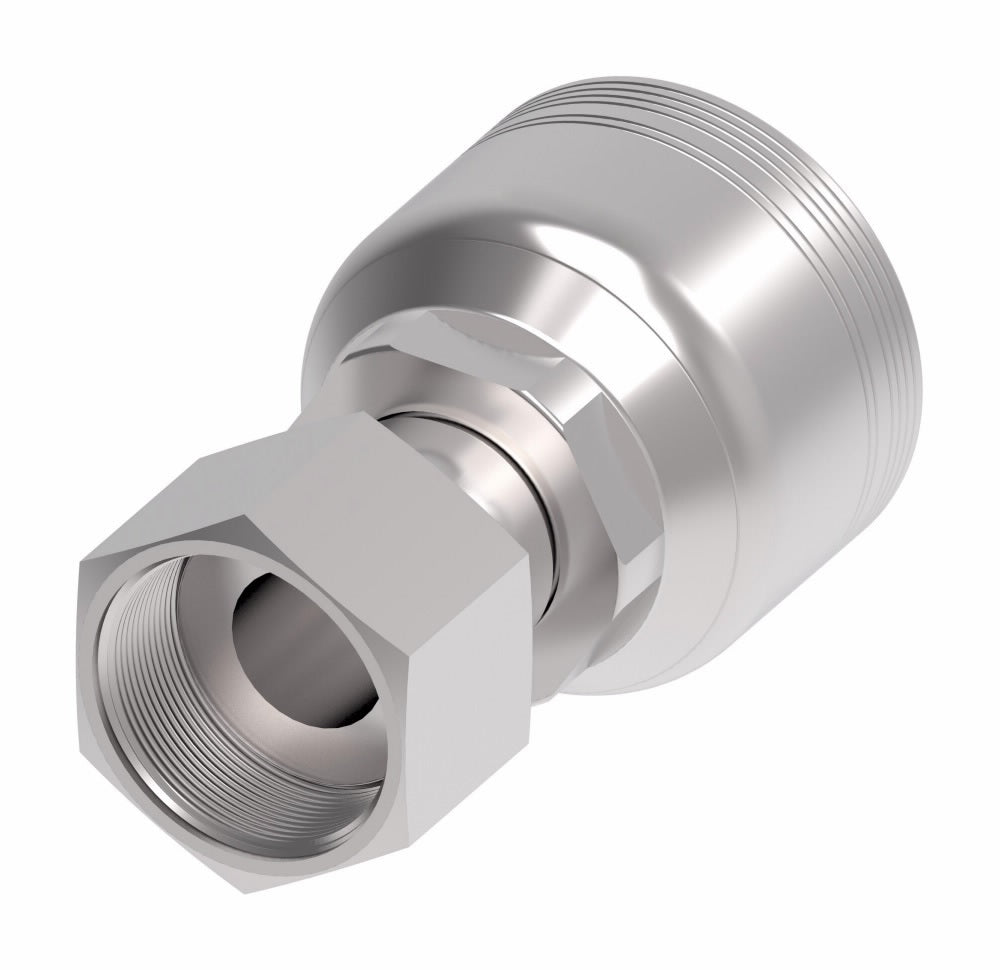

6 Wire 6S Female ORS Swivel Crimp Fitting (FR) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–39 $67.92
40–79 $61.42
80+ $54.20
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female O-Ring Face Seal
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
6SA16FR16 -16 25 -16 1-7/16-12 3.24" 1.68" 0.76" 1-5/8" 1-5/8"
6SA20FR16 -20 25 -16 1-11/16-12 3.24" 1.68" 0.76" 1-5/8" 1-7/8"
6SA20FR20 -20 31 -20 1-11/16-12 3.93" 1.72" 0.99" 1-13/16" 1-7/8"
6SA24FR24 -24 38 -24 2-12 4.95" 1.87" 1.22" 2-1/4" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
