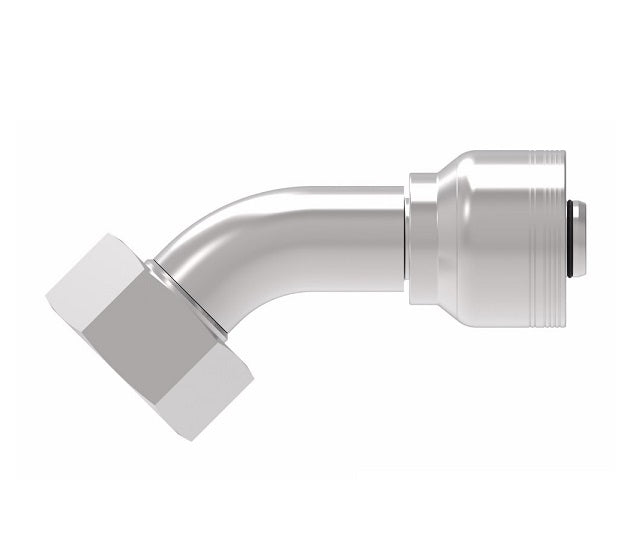

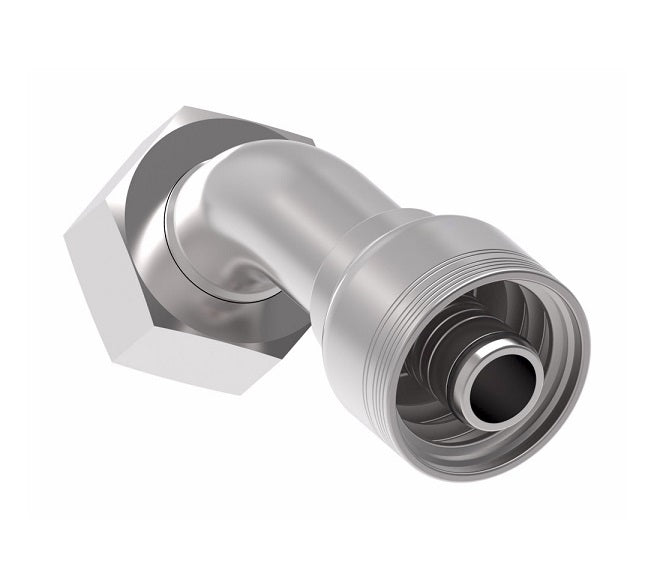

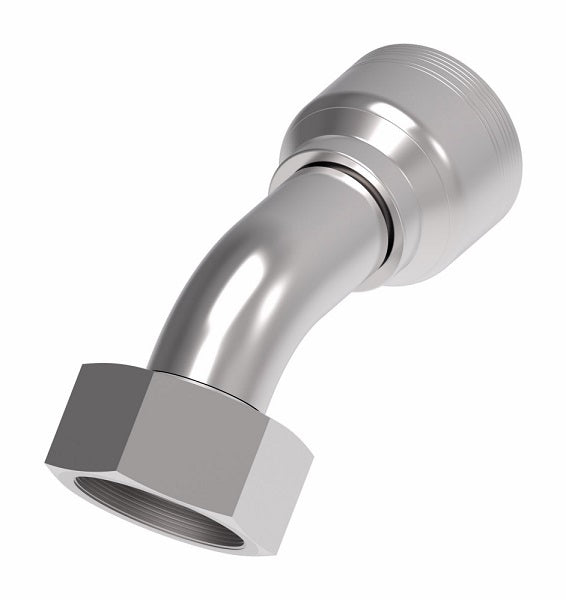

6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

Sale price$209.27

Aeroquip® by Danfoss
6 Wire 6S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSA) - 45° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Quantity Price Each
15–29 $198.81
30–59 $188.34
60+ $167.42
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • S38 Female DIN
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash H Hex 1
DN Dash Size
6S25DSA16 30 25 -16 M42X2 5.28" 3.72" 0.76" 1.38" 50mm
6S32DSA16 38 25 -16 M52X2 5.71" 4.15" 0.76" 1.54" 60mm
6S32DSA20 38 31 -20 M52X2 6.39" 4.19" 0.99" 1.54" 60mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
